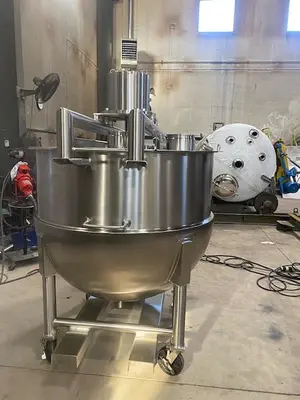

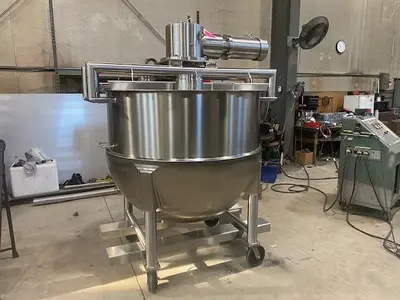

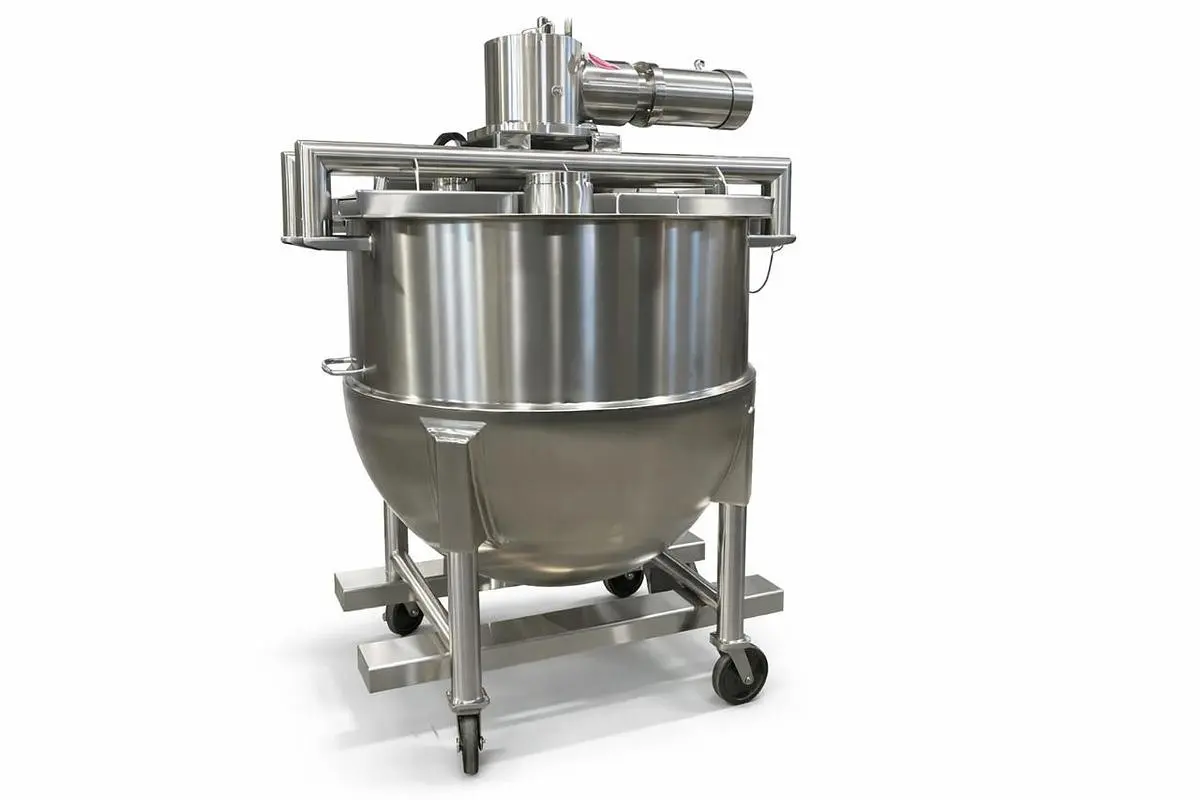

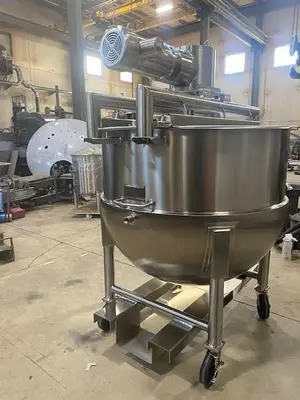

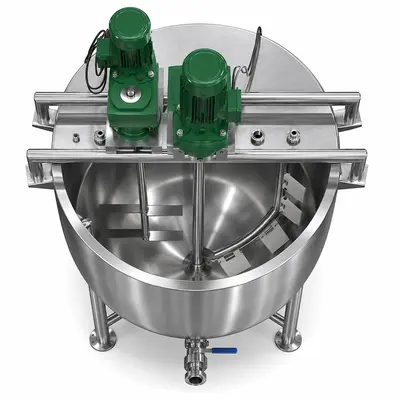

New 200 Gallon Double Motion Jacketed Steam Kettle manufactured by EIC Tanks. This 200 gallon steam kettle with triple motion agitation is engineered for high-performance heating, mixing, and processing of medium to high viscosity products. This Double motion mixing system provides powerful and uniform agitation, while the steam jacketed kettle design allows precise temperature control for cooking, blending, emulsification, and industrial processing.
Constructed with 316L stainless steel product contact surfaces, this industrial steam kettle offers superior corrosion resistance, sanitary performance, and long service life in demanding production environments. Designed for food processing, cosmetics manufacturing, pharmaceutical production, chemical blending, and specialty product manufacturing, this 200 gallon steam jacketed kettle delivers reliable mixing, heating, and processing performance.
This steam jacketed mixing kettle is fully customizable and manufactured in the USA by EIC Tanks, ensuring high quality fabrication and long-term operational reliability.
Manufacturer: EIC Tanks
Tank Capacity: 200 Gallon Steam Kettle
Material: 10 GA 316 Stainless Steel
Construction Type: Vertical Jacketed Mixing Kettle
Agitation System: Dual Motion Scraper & Mixer agitation
Heating Type: Steam Jacketed Heating System
Top Design: Closed Top – Available options / Hinged Lid / Dome Top /
Bottom Design: Dish Bottom – Available options / Cone Bottom / Sloped Bottom
Tank Dimensions: Customizable for new builds
Finish Options: Mill Finish / Polished Finish / Sanitary Finish
Condition: New – Built to Order
Manufactured In: USA
Lead Time: 14–16 Weeks
This 300 gallon Double motion steam kettle is designed for high-efficiency industrial mixing and heating applications. The steam jacketed kettle system provides uniform heat transfer throughout the vessel while the Dual motion agitator ensures complete product movement and consistent mixing performance.
The Dual motion mixing system combines:
• Anchor sweep agitation for full vessel coverage
• Center agitation for bulk product circulation
This combination ensures efficient mixing, improved heat transfer, and elimination of dead zones, making this industrial steam kettle mixer ideal for high viscosity and temperature-sensitive products.
Fabricated from premium 316 stainless steel, this 200 gallon steam kettle offers exceptional resistance to corrosion, harsh cleaning chemicals, chlorides, and high temperature processing environments.
EIC Tanks manufactures custom steam kettles ranging from 50 gallons to 5,000+ gallons, allowing customers to scale production with reliable mixing and heating solutions.
EIC steam jacketed kettles and mixing tanks are available with multiple configurations to match your production process and facility requirements.
Closed / Sealed Top – Ideal for controlled environments and sanitary processing
Open Top – Easy access for batching, mixing, and manual loading
Hinged Lid – Secure access with convenient operation
Removable Lid – Full internal access for cleaning and inspection
Dome Top – Increased structural strength and improved runoff
Sloped Top – Designed for drainage and sanitary performance
Flat Bottom – Stable and cost-effective for stationary use
Dish Bottom – Improved drainage and structural support
Cone Bottom – Complete discharge capability for viscous products
Sloped Bottom – Enhanced product flow and improved discharge
EIC steam kettles and mixing tanks can be equipped with a wide range of optional enhancements.
Heavy-duty casters or stainless steel wheels
Forklift channels
Structural support stands
Adjustable leveling feet
Skid-mounted tank configurations
Integrated load cells
Temperature probes (RTD or thermocouple)
Level sensors
Sight gauges
Digital monitoring displays
Fully integrated control panels
Jacketed tank design (single or dual wall)
Steam jacketed heating systems
Electric heating elements
Insulated exterior cladding
Glycol or hot water heating systems
Anchor Agitators
Ideal for medium to high viscosity products. Anchor agitators provide full-sweep mixing and can include wall scrapers to improve heat transfer in jacketed vessels.
Sweep Agitation Systems
Designed to move product across the entire vessel surface, reducing dead zones and improving uniformity.
High-Shear Rotor/Stator Mixers
Engineered for emulsification, particle size reduction, and rapid dispersion for cosmetic, pharmaceutical, and chemical applications.
Dual Motion & Triple Motion Systems
Combines sweep agitation with high-shear mixing for applications requiring both bulk movement and controlled shear.
Top Entry & Bottom Entry Agitators
Selected based on vessel design, sanitation requirements, and processing conditions.
Each mixing system is engineered directly into the vessel during fabrication to ensure proper load distribution, mechanical stability, and mixing efficiency.
CIP spray balls
Manways
Sight glasses
Pressure relief valves
Custom process fittings
This 200 gallon steam jacketed kettle with Double motion mixing is suitable for:
Food processing and sauce production
Cosmetic and cream manufacturing
Pharmaceutical processing
Chemical blending and batch processing
Personal care product manufacturing
Adhesives and coatings production
Specialty industrial manufacturing
✔ Manufactured in the USA
✔ Built from 316 stainless steel
✔ Triple motion mixing technology for high viscosity processing
✔ Custom sizes from 50 gallons to 5,000+ gallons
✔ Designed for sanitary, food-grade, pharmaceutical, and chemical environments
✔ Fully customizable for your process, facility layout, and production requirements
Tank Capacity: 200 Gallon Steam Kettle
Construction Type: Vertical Jacketed Mixing Kettle
Heating Type: Steam Jacketed Heating System
Tank Dimensions: Customizable for new builds
Manufactured In: USA
Lead Time: 14–16 Weeks
