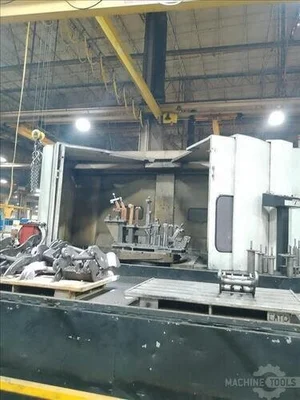

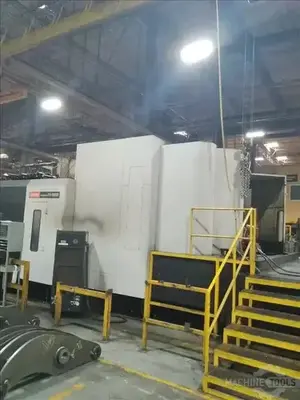

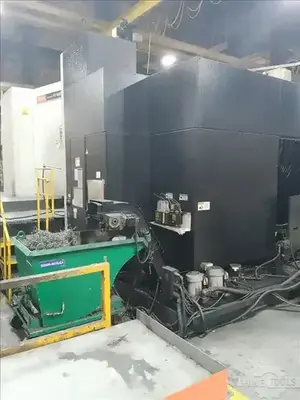

Mazak FH-10800 CNC Horizontal Machining Center
| X | 66.9" | 1,699.3 mm |
| Y | 55.1" | 1,399.5 mm |
| Z | 55.1" | 1,399.5 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 7,000 RPM | 7,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 39.3" | 998.22 mm |
| Pallet-L | 39.3" | 998.22 mm |
| # Axis | 4 | 4 |
X-Axis Travel: 66.9"
Y-Axis Travel: 55.1"
Z-Axis Travel: 55.1"
B-Axis Indexing: 1°
Number of Pallets: 2
Pallet Size: 39.3" x 39.3"
Max. Pallet Load: 6600 lbs
Max. Workpiece Size: 80" D x 40" H
Spindle Nose to Pallet Top: 3.94" - 60"
Spindle Nose to Pallet Center: 8" - 64"
Rapid Traverse (All Axes): 1600 IPM
Spindle Power: 40/50 hp
Spindle Taper: CAT 50
Max. Spindle Speed: 7000 RPM
Tool Changer: 120-ATC

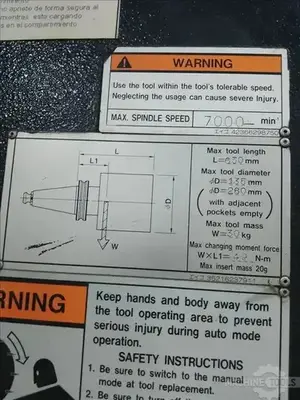

Max. Tool Diameter: 10.24"
Max. Tool Length: 26"
Max. Tool Weight: 66 lb.
Mazatrol Fusion 640M CNC Control
Through-Spindle Coolant
