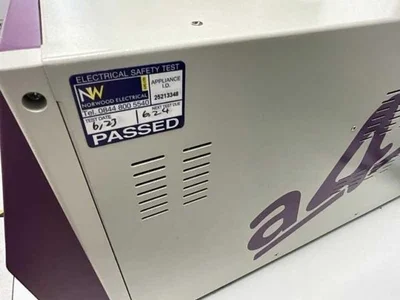

USED AZENTA A4S

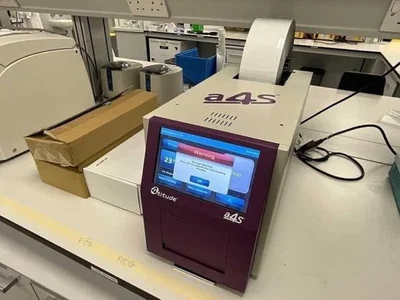

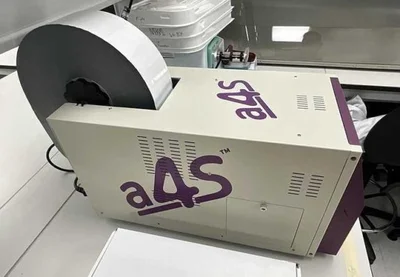

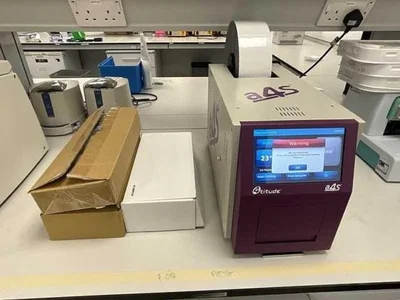

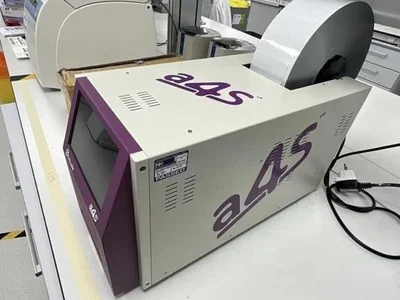

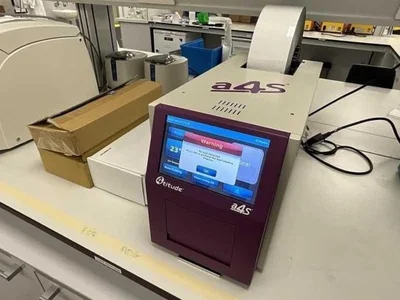

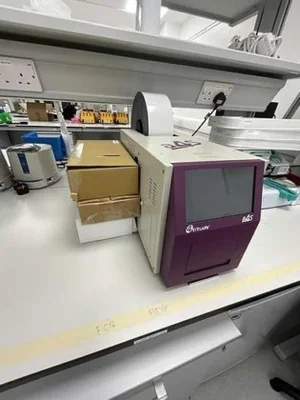

The 4titude A4S Automatic Heat Sealer is a compact, reliable, and efficient plate sealing system designed for high-throughput laboratories. It provides consistent sealing of microplates, PCR plates, and deep-well plates using heat and a range of sealing films or foils. Its automation, precision temperature control, and compatibility with various plate formats make it ideal for molecular biology, genomics, and drug discovery applications.

Includes

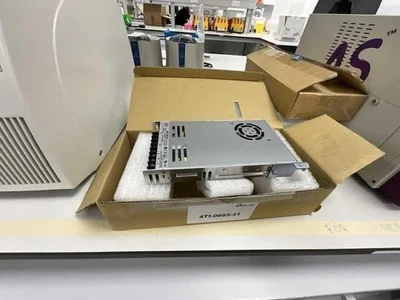

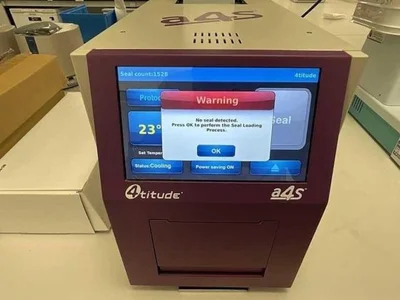

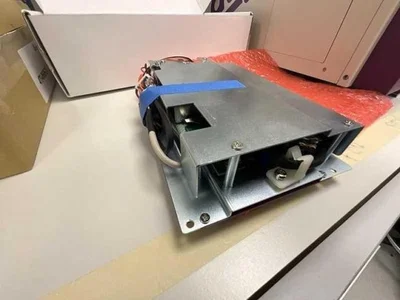

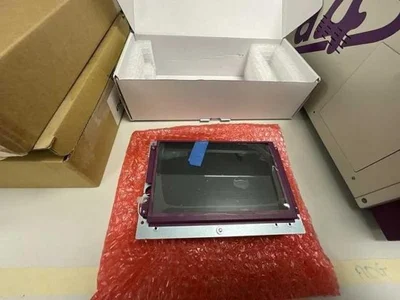

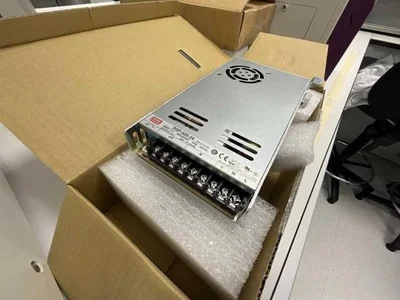

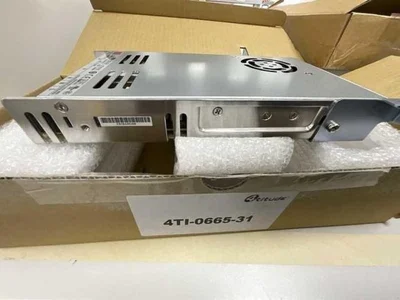

- Spare a4S LCD/W touch panel module- Spare electronic module

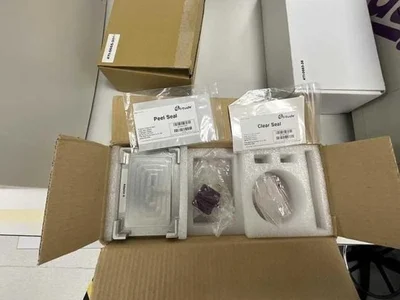

- Spare parts/plate

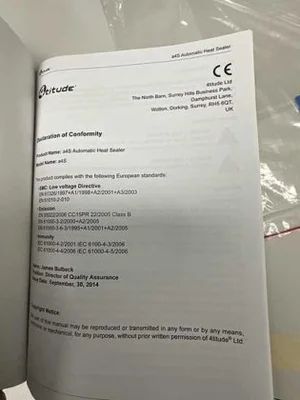

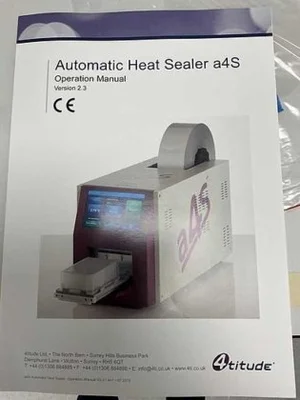

- User manual

Specifications

- Plate Compatibility: 24-, 48-, 96-, and 384-well plates (PCR, assay, or storage)
- Seal Types: Foil, film, or gas-permeable heat seals
- Temperature Range: Ambient to 200°C (adjustable)
- Seal Time: 0.5–10 seconds (programmable)
- Pressure Control: Pneumatic or mechanical (depending on setup)
- Throughput: Up to 6 plates per minute (application dependent)
- Dimensions (W × D × H): Approx. 26 × 45 × 35 cm
- Weight: ~20 kg
- Power Requirements: 100–240 V AC, 50/60 Hz

Applications

- PCR and qPCR sample preparation
- DNA, RNA, and protein analysis workflows
- Compound storage and assay plate sealing
- High-throughput screening in biotech and pharma labs
- Genomics and molecular diagnostics researchShow moreShow lessClick to Request More Info
