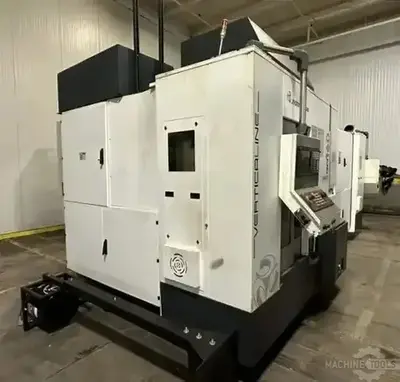

Jyoti ATM 160 CNC Inverted Vertical Turning Lathe
| Machining Length | 200 mm | 7.874" |
| # Axis | 4 | 4 |
| Chuck Size | 160 mm | 6.2992" |
| Bar Capacity | 40 mm | 1.5748" |
| Power | 9 kW | 12.1 hp |
| Max RPM | 7,000 RPM | 7,000 RPM |
| Turning Dia | 160 mm | 6.2992" |
Capacity
Chuck Size: 6”
Max. Turning Length: 7.9”
Max. Turning Diameter: 6”
Travels
Cross Travel (X-Axis): 27.5"
Longitudinal Travel (Z-Axis): 11.8”
Traverse (Y-Axis): 7.9”
Rapid Feed: 164 FPM
Main Spindle
Speed Range: 50-7000 RPM
Full Power Speed Range: 1500-4500 RPM
C-Axis Resolution: .0001°
Turret
Turret Type: Live Tool Servo
# of Stations: 12
Max. Boring Bar Diameter: 1.5"
Tool Size (Cross Sectional): .98” x .98”
Max. Number of Rotating Tools: 12
Live Tool Spindle Power: 55 HP
Auto Loader
Type of Drive: AC Servo
Max. Job Size: Dia 6.3” x Height 7.9”
Max. Possible Job Weight: 22 lb.
Accuracy (As per VDI / DGQ 3441)
Positioning Uncertainty (P): 0.00039"
Repeatability (Ps Medium): 0.00019"

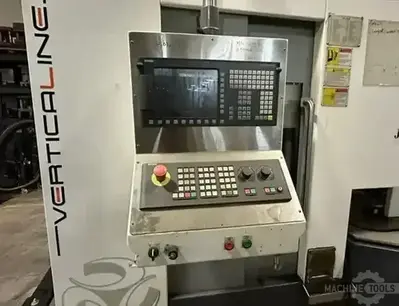

Siemens CNC Control
ChipBlaster Coolant System
