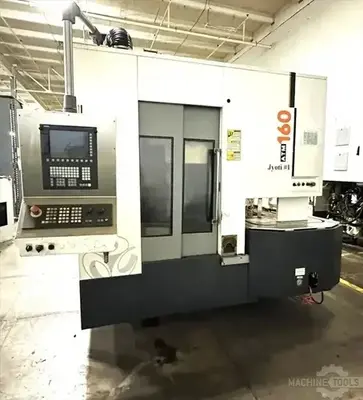

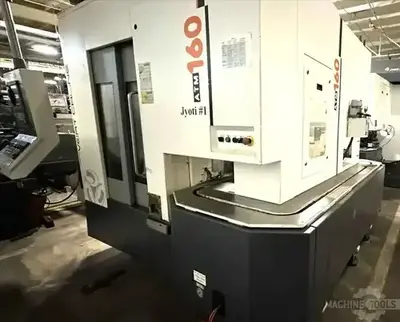

USED 2016 JYOTI ATM 160

Capacity
Chuck Size: 6”
Max. Turning Length: 7.9”
Max. Turning Diameter: 6”

Travels
Cross Travel (X-Axis): 27.5
Longitudinal Travel ( Z-Axis): 11.8”
Traverse (Y-Axis): 7.9”
Rapid Feed: 50 m/min

Main Spindle
Spindle Nose (Flat Ø): 140
Speed Range: 50-7000 RPM
Full Power Speed Range: 1500-4500 RPM
Spindle Motor Power: 12/100 HP
C-Axis Resolution: 0001°

Turret
Type: Live Tool Servo
Number of Stations: 12
Max. Boring Bar Diameter: 1.5"
Tool Size (Cross Sectional): .98” x .98”
Max. Number of Rotating Tools: 12
Live Tool Spindle Power: 55 HP

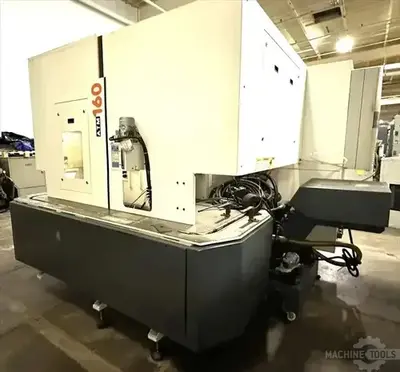

Auto Loader
Type of Drive: AC Servo
Max. Job Size: 6.3”Ø x 7.9”H
Max. Possible Job Weight: 22 lb.
Number of Jobs w/ Max Size: 22

Accuracy (As per VDI / DGQ 3441)
Positioning Uncertainty (P): 0.010mm
Repeatability (Ps medium): 0.005mm

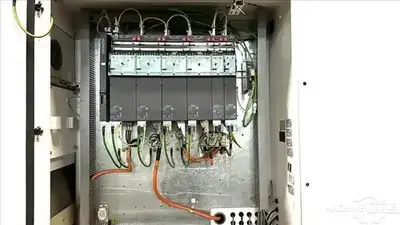

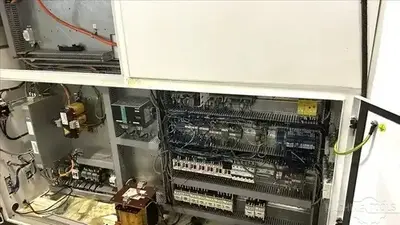

Siemens CNC Control

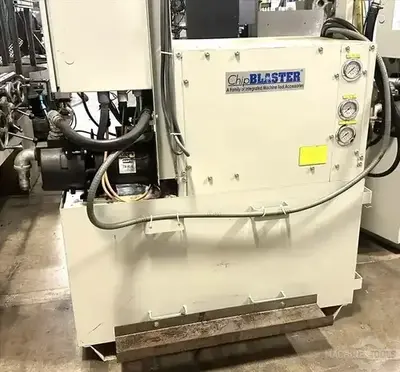

ChipBlaster Coolant System
