USED 2016 JYOTI TS 120

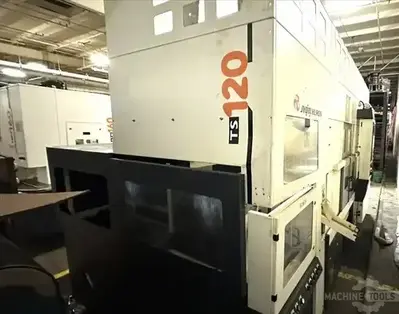

Jyoti TS 120 Twin Spindle CNC Chucker Lathe

Chuck: 6.5"
X-Axis Travel; 3"
Z-Axis Travel: 5.7"
Number of Spindles: 2
Spindle Nose: A2-5
Spindle 1 Motor Power: 11.1 HP / 7.4 HP
Spindle 2 Motor Power: 10 HP / 7.4 HP
Spindle Motor Speeds: 50 - 4500 RPM
Number of Turrets: (2) 8-Position Turrets
Indexing Time: 5 seconds
Rapid Feed X & Y-Axis: 945 IPM

Parts Loader
Work Piece Dimension (Loader Capacity): 4.7" x 3.1”
Max. Part Weight: (2) 6.6 lb.
Loader X (Left/Right) Axis Stroke: 72.8”
Max. Speed (X-Axis): 4724 IPM
Loader Y (Up/Down) Axis Stroke: 22"
Max. Speed (Y-Axis): 3543 IPM
Loader Z (Front/Rear) Axis Stroke: 6”
Max. Speed (Z-Axis): 1968 IPM
Standard Loading Time: 7 seconds

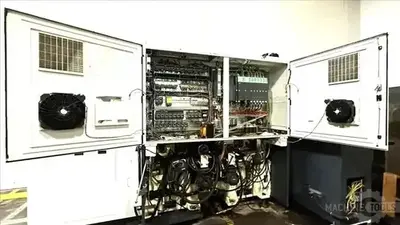

Siemens CNC Control

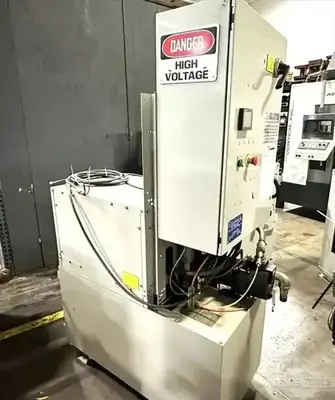

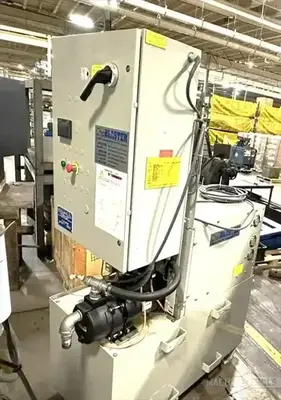

ChipBlaster Coolant System
