The Eppendorf BioFlo 320 is a versatile and advanced bioprocess control station designed for small- to mid-scale cell culture and microbial fermentation applications. Known for its flexibility, intuitive software, and modular design, the BioFlo 320 supports a wide range of vessel sizes and bioprocessing strategies. It enables precise control over key parameters, ensuring consistent results for research, process development, and pilot-scale production.
Includes

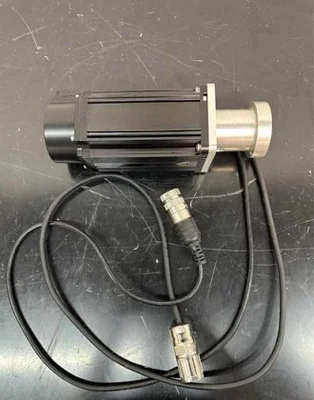

- Eppendorf G4329-23 5.5L Bioreactor Glass- Industrial Indexing Systems ESM80K-C1 Motor
- Minebea Intec MAPP1U-150FE-LU Scale (Min.: 0.05 lbs / Max.: 250 lbs)
Specifications
- Working Volume Range: 250 mL – 40 L
- Control Parameters: pH, DO, temperature, agitation, gas flow, antifoam, feed
- Gas Control: Up to 4 mass flow controllers (air, O₂, N₂, CO₂)
- Agitation Speed: Up to ~1200 rpm (vessel dependent)
- Temperature Control: Ambient +5 °C to 60 °C
- pH Control Range: 2.0 – 12.0
- DO Control Range: 0 – 100%
- Interface: 12.1" color touchscreen
- Connectivity: Ethernet, USB, OPC, Modbus
- Dimensions: ~48 × 60 × 58 cm
- Weight: ~50 kg
- Power Requirements: 100–240 V AC, 50/60 Hz
Research Applications
- Mammalian and insect cell culture bioprocessing
- Microbial fermentation and protein production
- Vaccine and biologics development
- Synthetic biology and metabolic engineering
- Process optimization and scale-up studiesShow moreShow lessClick to Request More Info
Type: Bioreactors
