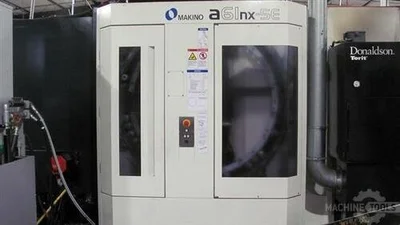

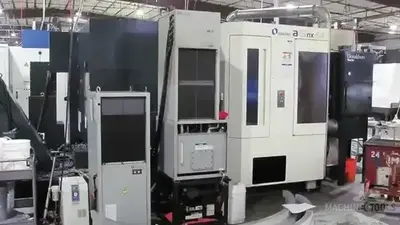

USED 2016 MAKINO A61NX-5E

X-Axis: 28.7"
Y-Axis: 28.7"
Z-Axis: 26.8"
B-Axis: -110° to +180°
C-Axis Index: .0001°
Max. Feedrate: 1969 IPM
Pallet Size: 15.75" x 15.75"
# of Pallets: 2
Pallet Load Capacity: 300 lbs
Spindle Motor: 80 HP
Spindle Nose to Table Center: 3.9" - 30.7"
Spindle Speed: 24,000 RPM
Spindle Taper: HSK-A63
Tool Changer: 60-ATC
Rapid Traverse Rates (X & Y / Z): 1890 IPM / 1693 IPM
Max. Tool Diameter: 2.76" / 6.7"
Max. Tool Length: 20.1"
Max. Tool Weight: 26.4 lbs

Professional 5 CNC Control
5-Axis Simultaneous Machining Capability
Integral Trunnion Tilt/Rotary Table
Through Spindle Coolant
Renishaw RMP600 Workpiece Measuring Probe
Resnishaw NC4S Laser ATLM
Chip Conveyor
Vacuum Table with Condinsate Spearator
Automatic Air Blower Nozzle
Workpiece Washing Gun
Spindle Chiller Unit
Remote Jog Handle
Donaldson Torit Mist Collector
