USED 2002 PINES 100

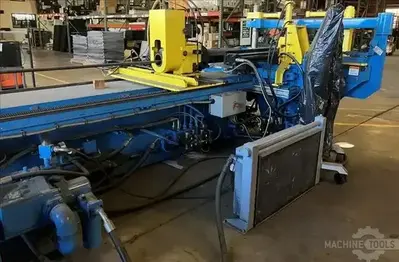

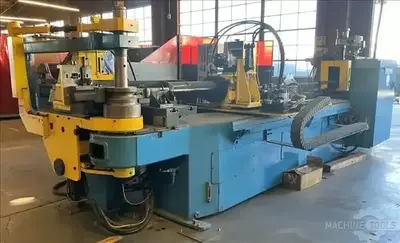

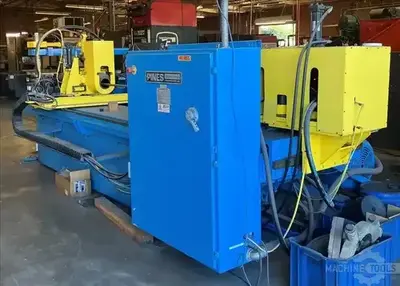

Pines 100 3-Axis CNC Tube Bender

Maximum Tube Bending Capacity: 4" OD x 0.109" WT (mild steel)
Maximum Centerline Radius: 12"
Maximum Degree of Bend: 180° + springback
Maximum Tube Length Over Mandrel: 168" (approx)
Bending Rotation: Left-Hand (Counter-Clockwise)

BendPro G2V2 CNC Control
Hydraulic Pressure Die Assist
Hydraulic Mandrel Extractor
Wiper Die Holder
Overhead Tie Bar Assembly
Automatic Lubrication System
