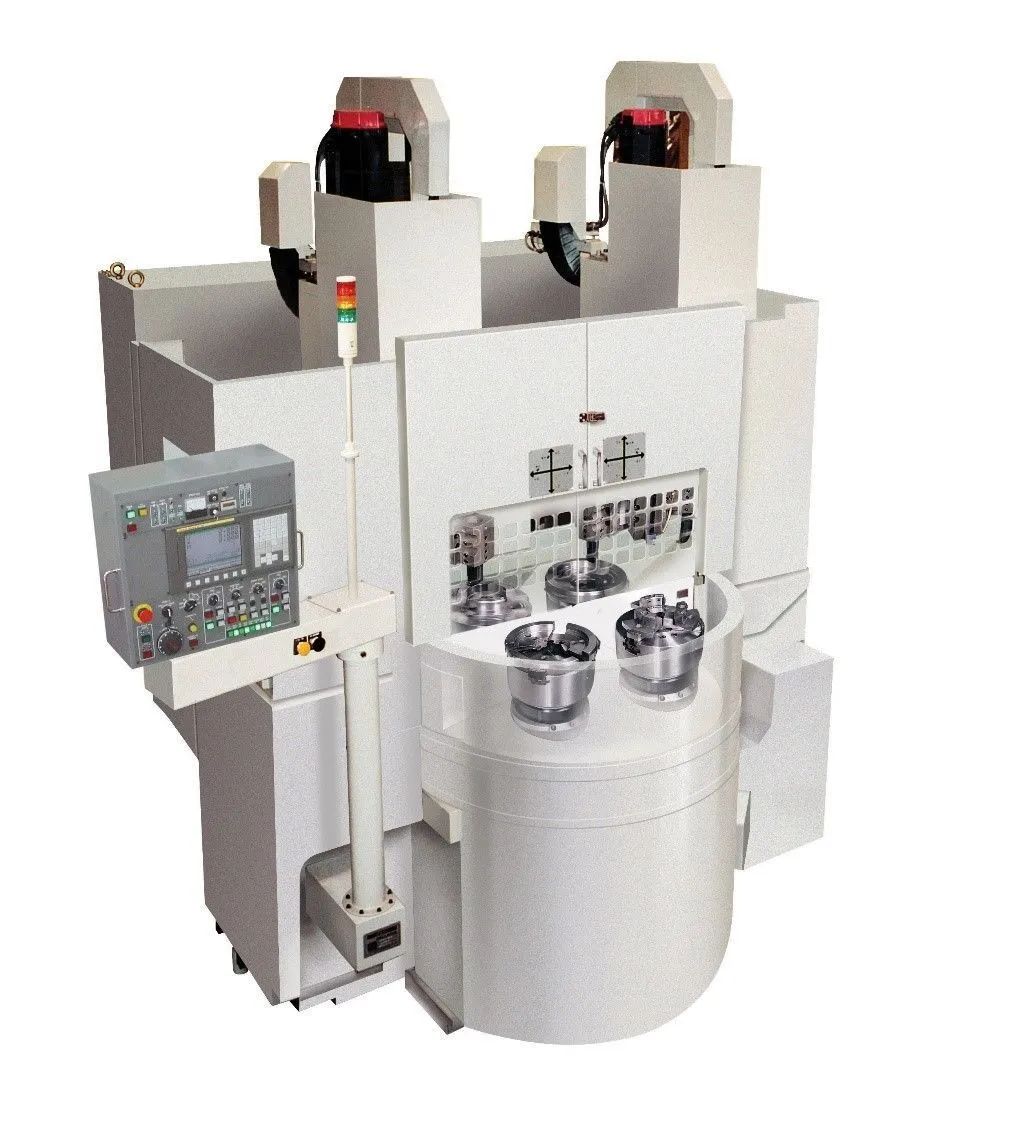

Introducing the 2024 SHIMADA VT4-350 CNC Turning Center. With 4 spindles and live tooling, this new machine offers a 14.78" turning diameter, 12" chuck, and max RPM of 3,200. Equipped with a hydraulic unit, coolant device, and more. Perfect for precision work.
| Live Tooling | Yes | Yes |
| Y-Axis | No | No |
| Sub Spindle | No | No |
| Machining Length | 7.87" | 199.9 mm |
| # Axis | 4 | 4 |
| X Travel | 11.81" | 299.97 mm |
| Z Travel | 17.7" | 449.58 mm |
| Chuck Size | 12" | 304.8 mm |
| Power | 3,530 hp | 2,632.3 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 14.78" | 375.41 mm |
| Tailstock | No | No |
| Barfeed | No | No |
| Control | CNC (FANUC Oi-TD) | CNC (FANUC Oi-TD) |
| Dimensions | 119"L x 117"W | 119"L x 117"W |
| Weight | 26,500 | 26,500 |
1.1 Capacity
Max. turning diameter Ø14.78” Ø375mm
Max. turning length 7.87” 200mm
Distance between both spindles 16.70” 424.2mm
1.2 Spindle Headstock
#of spindles 4 spindles (2 for turning,2 for loading/unloading)
Spindle nose A2-8
Chuck size Ø12” (Max. Ø15”)
Spindle motor 35/30HP 26/22KW
Spindle rpm 32 – 3,200 rpm
1.3 Feed axes
Travel (X)11.81” 300mm
(Z) 17.7” 450mm
Rapid feed rate (X)787ipm 20m/min
(Z)787ipm 20m/min
1.4 Turret 8 station turret (4 tools for ID, 4 for OD) x 2 sets
Outer tool size, Inner tool size □1”/ Ø1.5”
1.5 Floor to spindle surface 45.07” 1,145mm
Floor space 119”x117.3” 3,025x2,980mm
Weight 26,400lbs 12,000kgs
1.6 Electric power source 60KVA, 200/220V, 60Hz
Equipped With:
Hydraulic Unit
Coolant Device
Full Enclosure Splash Guard
Production Counter
Lift Up Chip Conveyor
Work Light
Alarm Message
Hand Tool Kit
