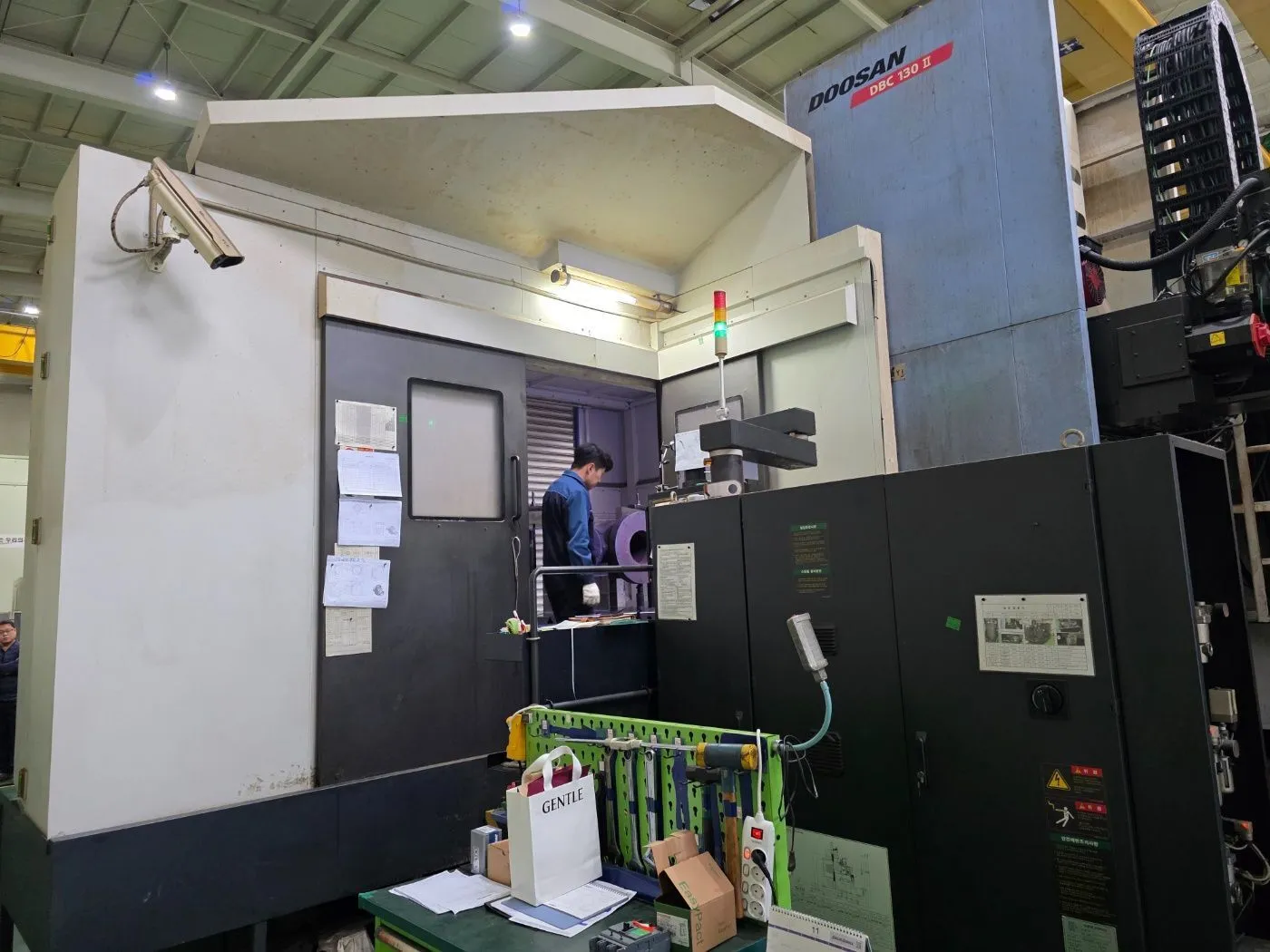

USED 2013 DOOSAN DBC-130 II

Doosan DBC-130 II CNC Boring Mill, features dual 63"x63" pallets, Fanuc 31iA control, and 70 bar coolant. Travels: 118.1"x88.6"x78.7"x27.6". Spindle: 5.18" diameter, BT-50 taper, 35 HP, 2,500 RPM. Equipped with chip conveyor.

Travels X,Y,Z,W Axes: 118.1" x 88.6" x 78.7" x 27.6"
(250mm rising block for column)
Spindle Diameter 5.18"
Spindle Taper Big Plus BT-50
Pallet size (2 pallets) 63" x 63"
Pallet Indexing 0.001 Degree
90 Position Tool Changer
Scales in X,Y and Z Axis
35 HP Spindle Motor
Spindle Spped 2,500 RPM

Fanuc 31iA CNC Control
70 Bar Coolant Through Spindle
Chip Conveyor
Full Enclosure
