Haas VF‐3YT Vertical Machining Center (2017), Extended Y‑travel.
| size | 40" x 26" x 25" | 40" x 26" x 25" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 26" | 660.4 mm |
| Z Travel | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | 40 | 40 |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |

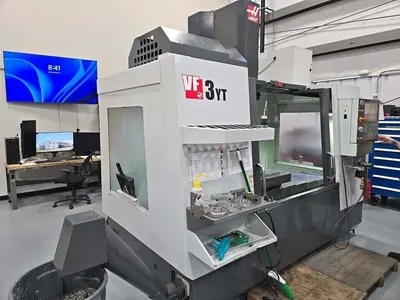

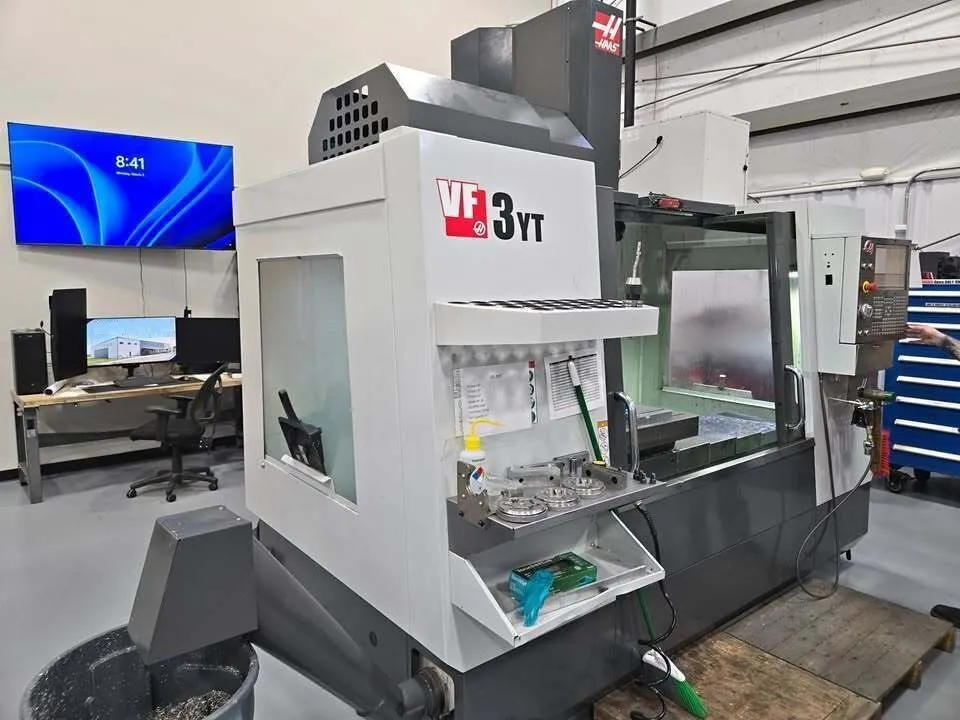

2017 Haas VF‑3YT vertical machining center with extended Y‑travel.
• Travel: X 40" / Y 26" (YT) / Z 25"
• Spindle: 8100 RPM inline direct‑drive
• Spindle Taper: CAT40
• Tool Changer: 30+1
• Table Size: 48" × 18"
• Max Cutting Feedrate: 500 ipm
• Rapid Traverse: 1,000 ipm
• Max Weight on Table: 3,500 lb
• Coolant: Flood coolant + programmable coolant nozzle
• Chip Management: Auger-style chip conveyor
• Power Requirements: 3‑phase, 195–260 VAC
Control & Options
• Haas NextGen Control
• High‑speed machining (HSM)
• Rigid tapping
• Wireless intuitive probing system
• Ethernet + USB connectivity
• Worklight and spindle load monitoring
Condition & Maintenance
• Spindle runs smooth across full RPM range
• Ways and ballscrews regularly lubricated and maintained
• No alarms or mechanical issues
• Machine holds tolerance for production work
Included with Sale
• Toolholders
• Manuals
Machine is in continuous light production and can be inspected under power. All axes run smoothly with no abnormal noise or backlash outside normal spec. Spindle and tool changer operate reliably. Mist collector not included.
