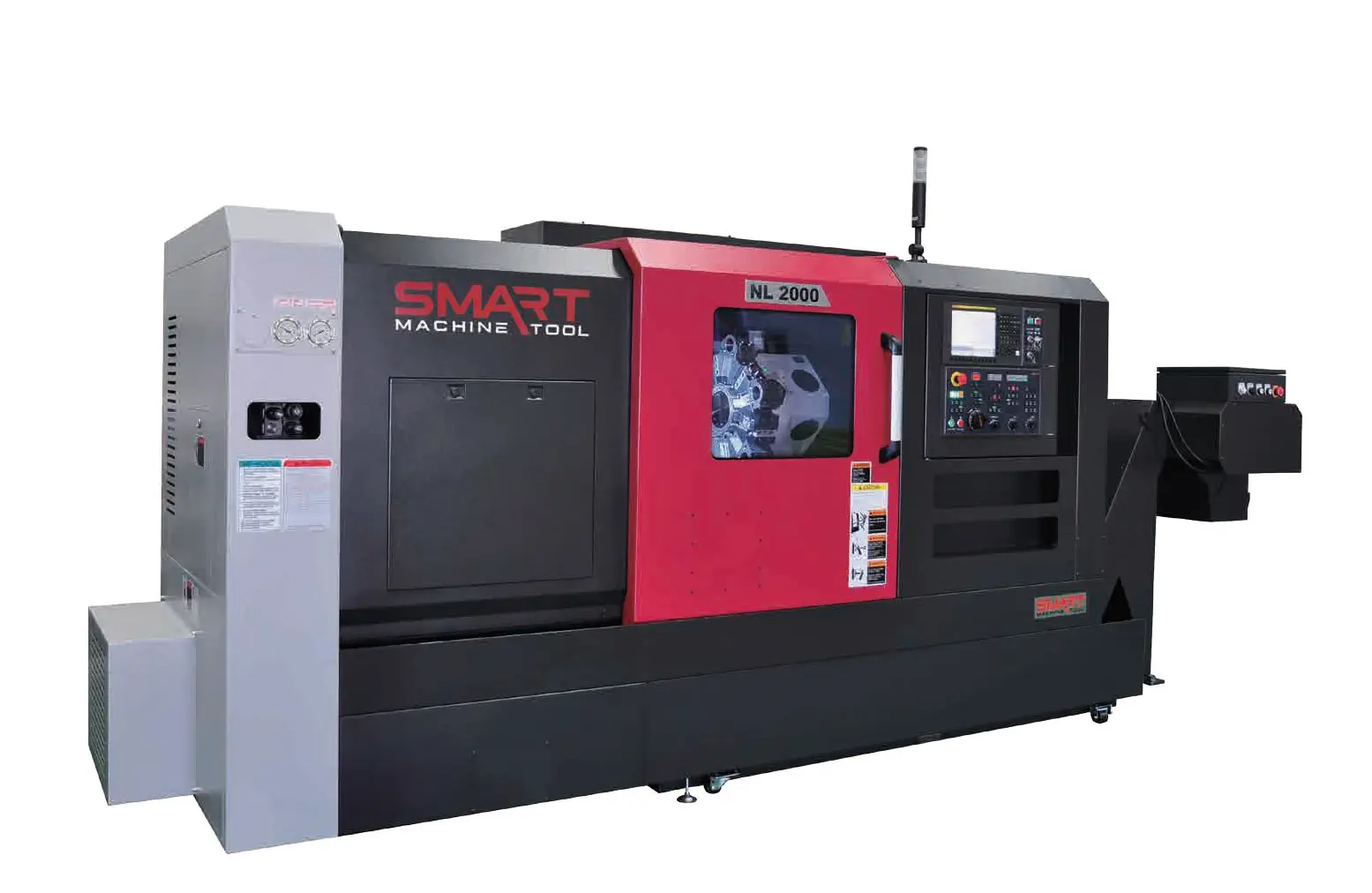

New SMART MACHINE TOOL NL 2000BY CNC Lathe with live tooling and Y-axis milling.
Box Ways construction with a Fanuc 0iTF Plus control
| Chuck Size | 8" | 203.2 mm |
| Swing | 31.89" | 810.01 mm |
| Machining Length | 28" | 711.2 mm |
| Bar Capacity | 2.625" | 66.675 mm |
| Live Tooling | Yes | Yes |
| Y-Axis Milling | Yes | Yes |
| # of Turrets | 1 | 1 |
| Turning Dia | 16.18" | 410.97 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 01TF Plus Control) | CNC (Fanuc 01TF Plus Control) |
Tool Presetter
• Oil Skimmer
• Barfeeder Interface
• Air Blow for Main Spindle
• Manual Guide i
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
SMART VALUE PACKAGE: • Chip Conveyor - Side Discharge
• Auto Parts Catcher
• 290 PSI Coolant Pump
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Ligh
