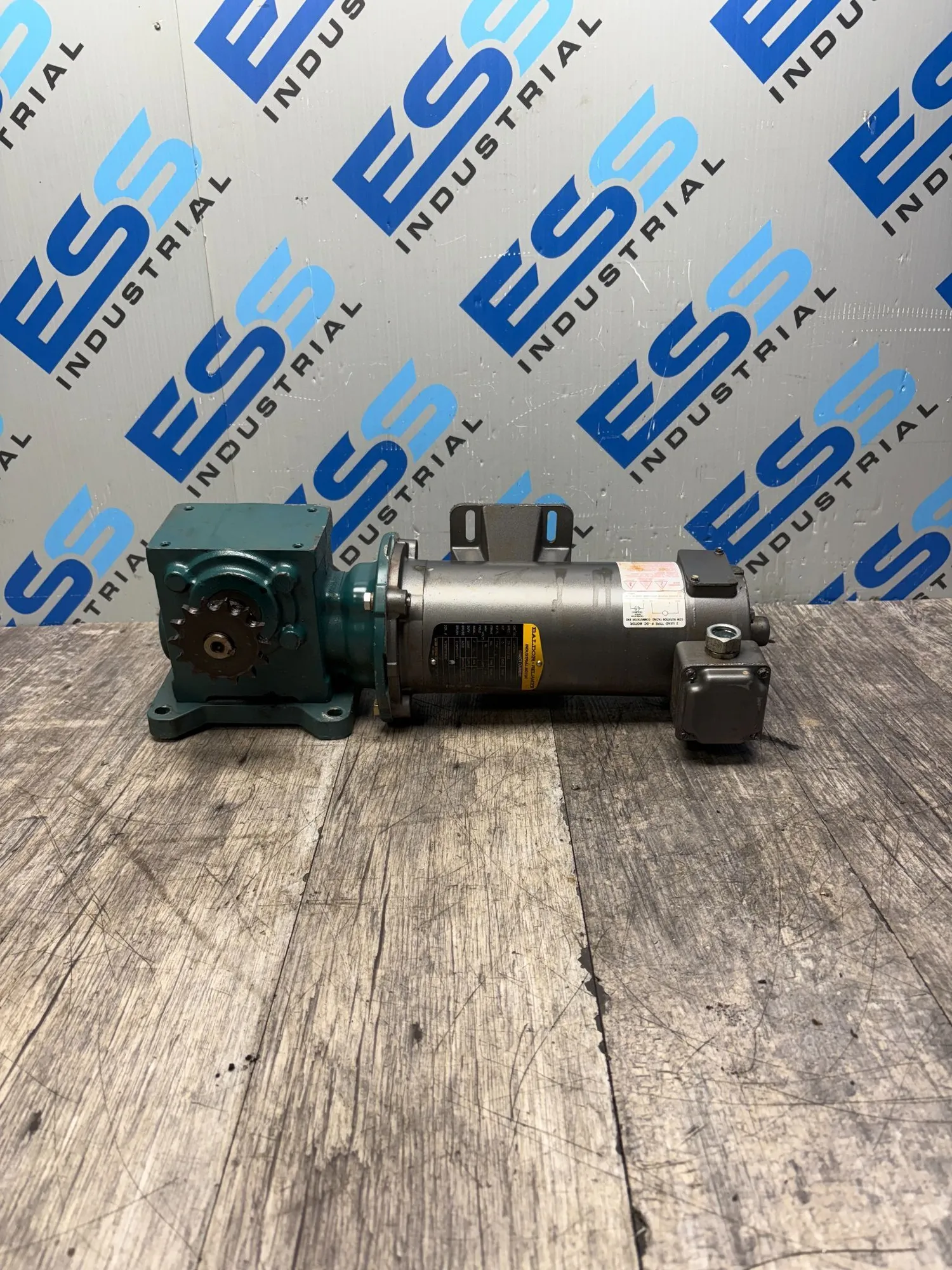

USED BALDOR CDP3330
Overview
Description
SPECS:
Motor Specifications
Manufacturer: Baldor Reliance
Catalog Number: CDP3330
Specification: 33-2024Z122
Motor Type: Permanent Magnet DC Motor
Horsepower: 0.5 HP
RPM: 1750
Frame: 56C
Armature Voltage: 90 VDC
Amperage: 4.8 A
Enclosure: TENV (Totally Enclosed Non-Ventilated)
Insulation Class: F
Duty: Continuous
Ambient Rating: 40°C
Bearings:
DE: 6203
ODE: 6203
Gear Reducer Specifications
Manufacturer: Tigear-2
Part Number: 17Q30R56
Type: Worm Gear Speed Reducer
Ratio: 30:1
Maximum Output Torque: 615 lb-in
Maximum Input HP: 0.76 HP
Mechanical Rating: 1750 RPM @ 1.0 Service Factor
Mounting Style: Foot Mount
Output: Shaft with sprocket installed
BALDOR CDP3330 DC Motor, used condition. Features 0.5 power specification. Ideal for projects requiring basic DC motor functionality.
Specifications
| Power | 0.5 hp | 0.4 kW |
|---|
