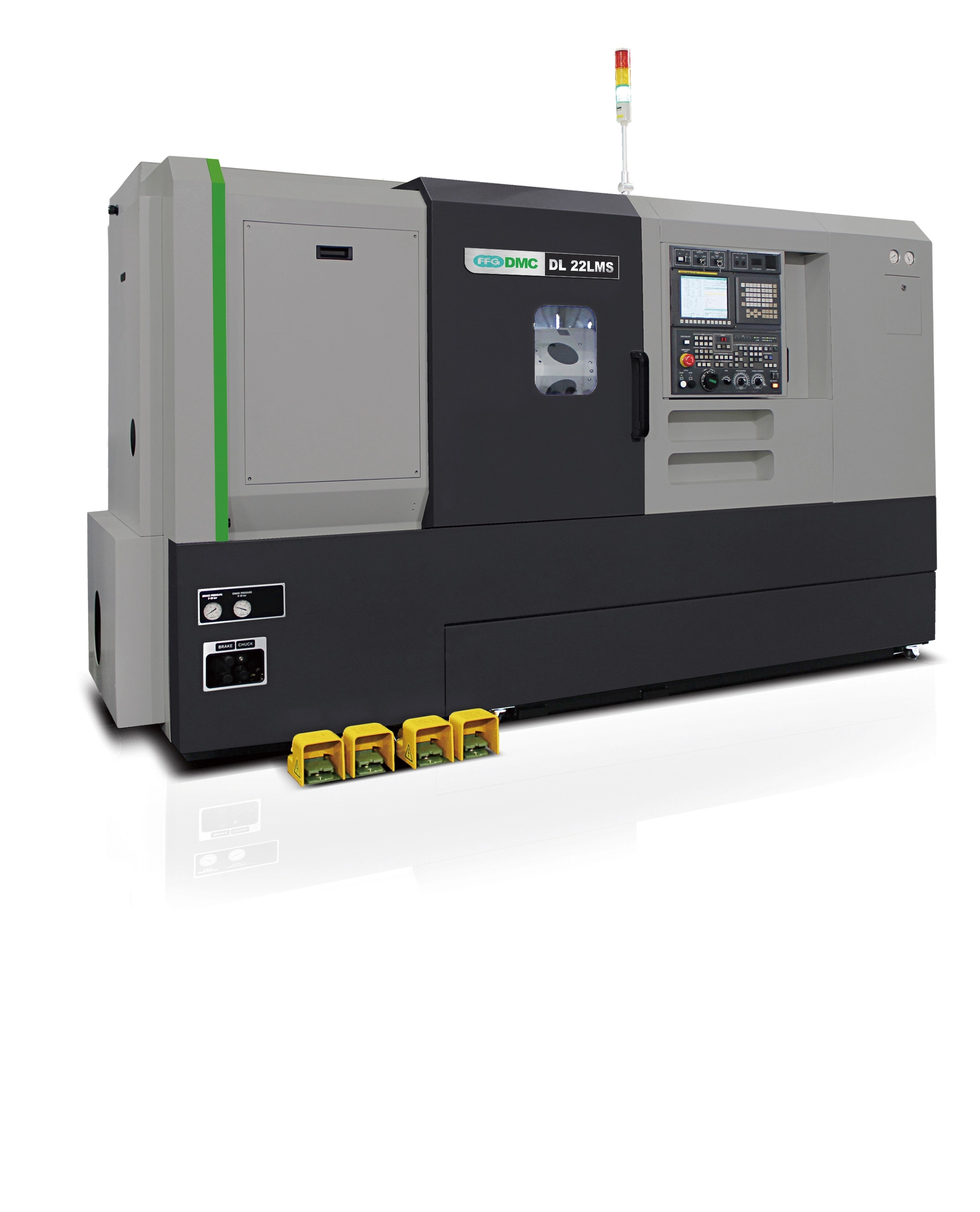

DL-22LMS, Fanuc 0i-TF Plus with 10.4" LCD & Manual Guide i, Main Spindle: 4,000RPM | 11/15kw (20HP/25HP) | 8" Chuck, Sub Spindle: 6,000 RPM | 5.5/7.5kW (7.5/10HP) | 6" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6/A2-5, X/Z Box Way, Bar Feeder Interface, Chip Conveyor (side type), Coolant Gun, Oil Skimmer (belt type), Parts Catcher for Main Spindle (with box), Tool Presetter (portable), 4 Extra M-Codes
| # Axis | 6 | 6 |
| Swing | 21.6" | 548.64 mm |
| Machining Length | 19.68" | 499.87 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Control | CNC (FANUC 0I-TF) | CNC (FANUC 0I-TF) |
| Dimensions | (L x W) 3,320 mm (130.7”) x 1,600 (62.99”) | (L x W) 3,320 mm (130.7”) x 1,600 (62.99”) |
| Weight | 4,500 kg (9,921 lbs.) | 4,500 kg (9,921 lbs.) |
