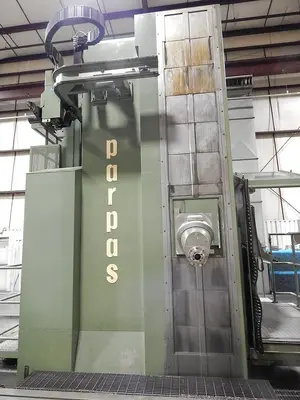

USED PARPAS ML-120

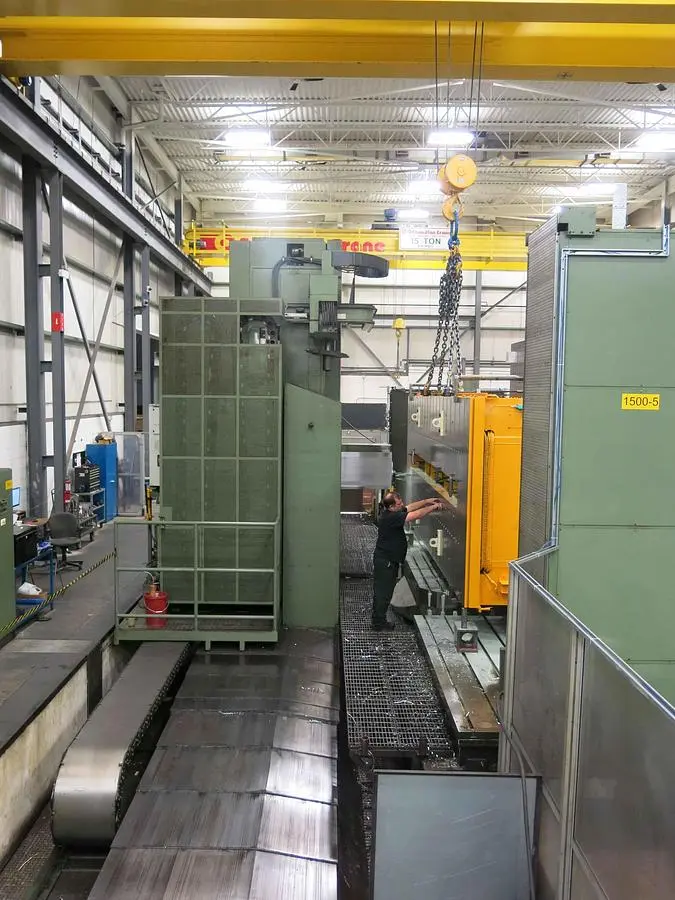

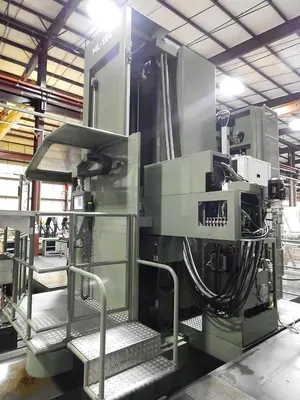

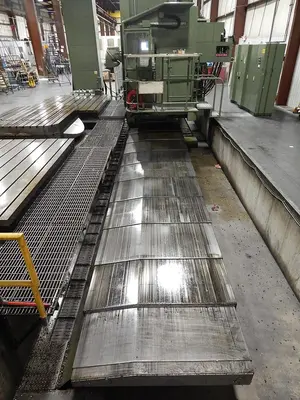

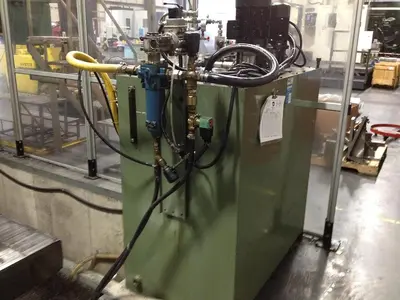

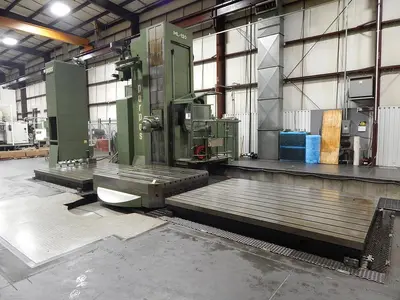

The Parpas ML-120 is a large-capacity CNC floor type horizontal boring mill built for machining oversized and heavy components. This 2007 machine features a 5" spindle with #50 taper, 4,000 RPM spindle speed, and massive travels including 400" (10,000 mm) in X, 138" (3,500 mm) in Y, and 59" (1,500 mm) in Z. Equipped with a 98.5" × 78.7" rotary table with 88,000 lb capacity, 120-position automatic tool changer, and multiple heads including universal and 90° heads, the ML-120 is ideal for large-scale machining in energy, aerospace, and heavy industrial applications. Controlled by Heidenhain CNC and complete with rotary table chip conveyors, main chip conveyor, and machine chiller.

Spindle Diameter: 5 in
Spindle Taper: 50 taper
Spindle Speed: 4,000 RPM
X-Axis Travel: 400 in (10,000 mm)
Y-Axis Travel: 138 in (3,500 mm)
Z-Axis Travel: 59 in (1,500 mm)
B-Axis Travel: 59 in
Rotary Table Size: 98.5 in × 78.7 in
Rotary Table Capacity: 88,000 lbs
Stationary Table Capacity: 200,000 lbs
Automatic Tool Changer: 120 position
Power Requirement: 480V / 3 phase / 60 Hz

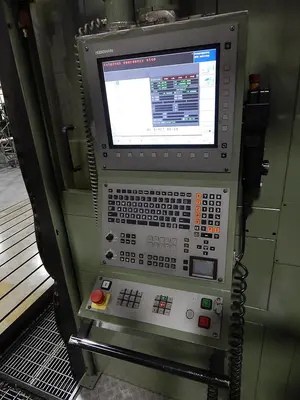

HEIDENHAIN CNC CONTROL

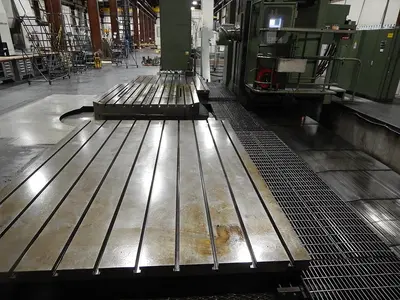

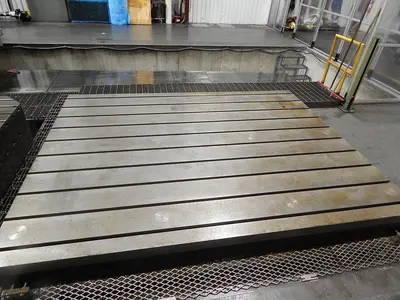

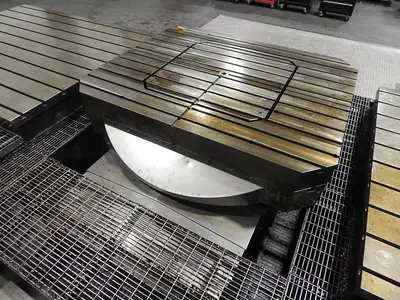

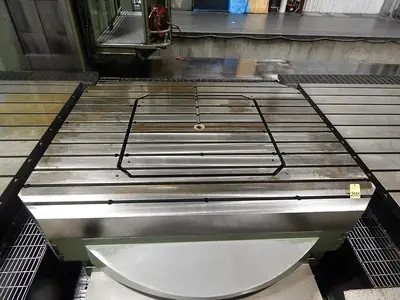

INFINITE INDEX ROTARY TABLE

CENTER MOUNT ROTARY TABLE

120 POSITION AUTOMATIC TOOL CHANGER

HEAD CHANGER STORAGE TOWER

UNIVERSAL HEAD

90 DEGREE HEAD

STANDARD BORING HEAD
