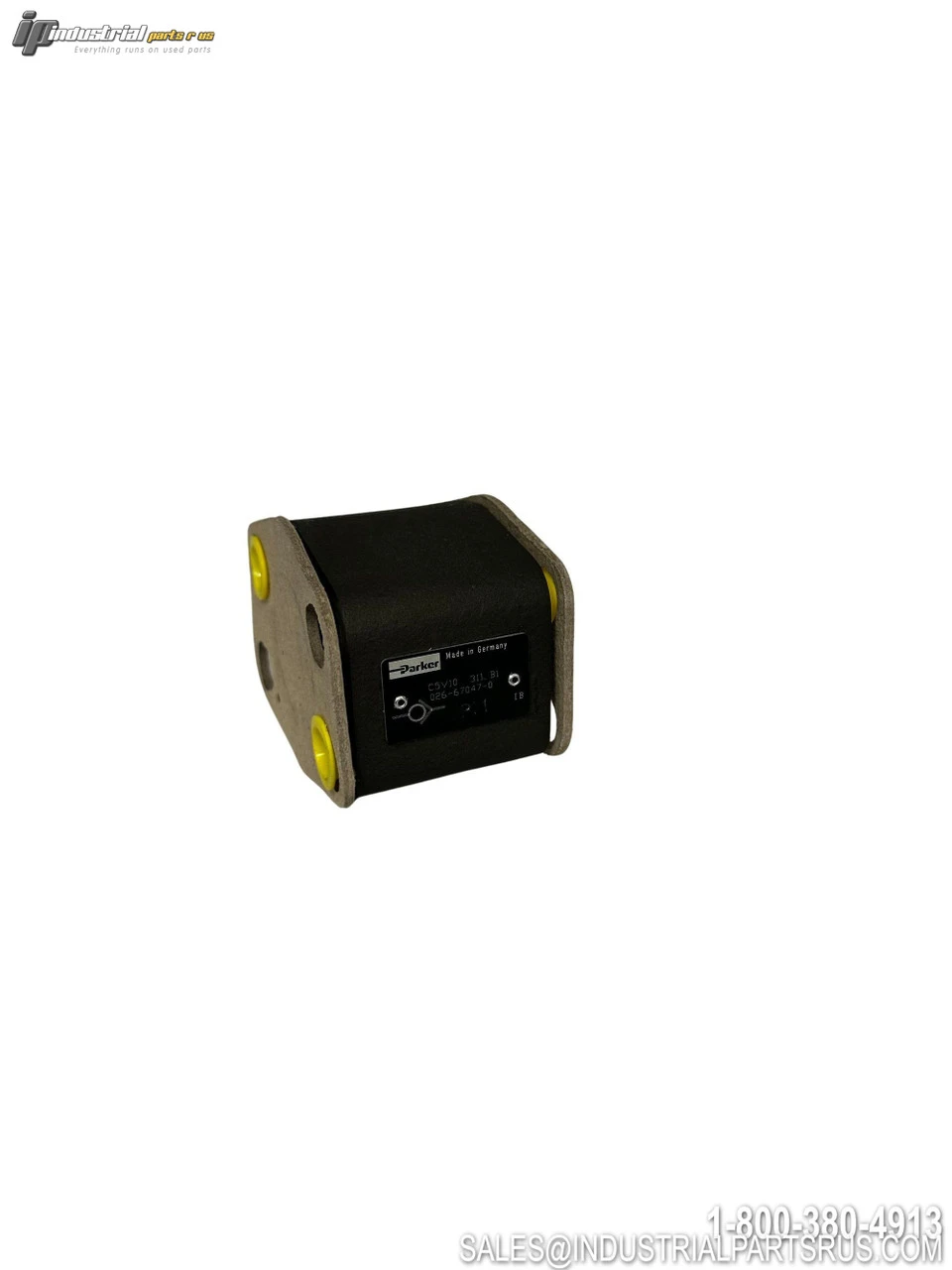

NEW PARKER 026-67047-0

Parker direct operated check valves series C5V ensure free flow in one direction and block the flow in the counter direction while providing high flow rates for optimized performance. They are part of the Parker valve range with SAE flanges which is unique in its variety. The SAE flanges in size SAE61 or SAE62 allow to mount the C5V directly on the outlet flange of pumps or on the inlet flange of actuators to achieve a very compact design. They protect against pressure shocks from the system.
Specification
Value
Brand
Parker
Model/Part Number
026-67047-0
Series
C5V
Complete Model
C5V10-311B1
Nominal Size
1 1/4 inch
Flange Type
SAE 61
Cracking Pressure
1.0 bar (15 PSI)
Seal Material
Nitrile (NBR)
Maximum Operating Pressure SAE 61
280 bar
Nominal Flow
400 L/min
Weight
1.3 kg (2.9 lbs)
Fluid Temperature Range
-20°C to +70°C
Ambient Temperature
-20°C to +60°C
Mounting Type
2-port in-line flange
We warranty all items for 30 days from date of purchase.

SKU: AI0805
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Germany
Manufacturer: Parker
Part Number: 026-67047-0
Shelf: B-12
Model: 026-67047-0
MPN: 026-67047-0
Type: Check Valve
