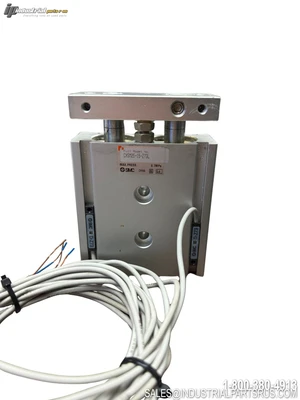

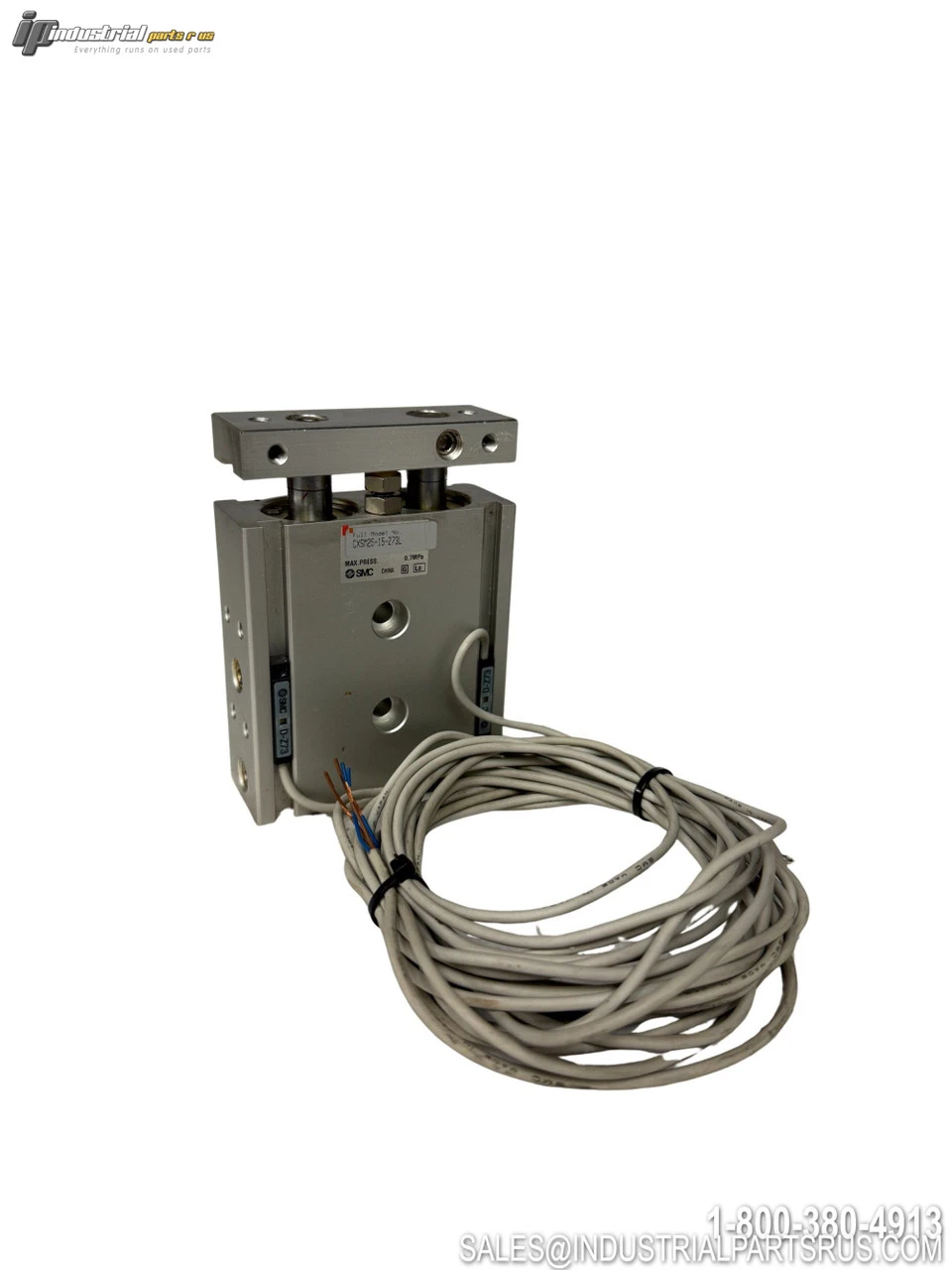

USED SMC CXSM25-15-Z73L
Overview
Description
The SMC CXSM25-15-Z73L is a compact dual rod guided pneumatic cylinder from SMC's CXS series. This cylinder features high-precision guide function designed for accurate pick-and-place applications and light duty material handling with non-rotating accuracy of ±0.1°.
Specification
Value
Brand
SMC
Model/Part Number
CXSM25-15-Z73L
Series
CXS
Bore Diameter
25mm
Stroke Length
15mm
Cylinder Type
Dual Rod Guided
Bearing Type
Slide Bearing
Port Thread
Rc 1/8
Maximum Operating Pressure
0.7 MPa
Proof Pressure
1.05 MPa
Minimum Operating Pressure
0.05 MPa
Piston Speed
30-600 mm/s
Operating Temperature
-10 to 60°C
Non-Rotating Accuracy
±0.1°
Built-in Magnet
Yes
Auto Switch Capable
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI0783
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: CXSM25-15-Z73L
Shelf: B-12
Bore Diameter: 25 mm
Model: CXSM25-15-Z73L
MPN: CXSM25-15-Z73L
Type: Guided Cylinder
