USED PANASONIC M7RX15G4L W/ MX7G180
Overview
Description

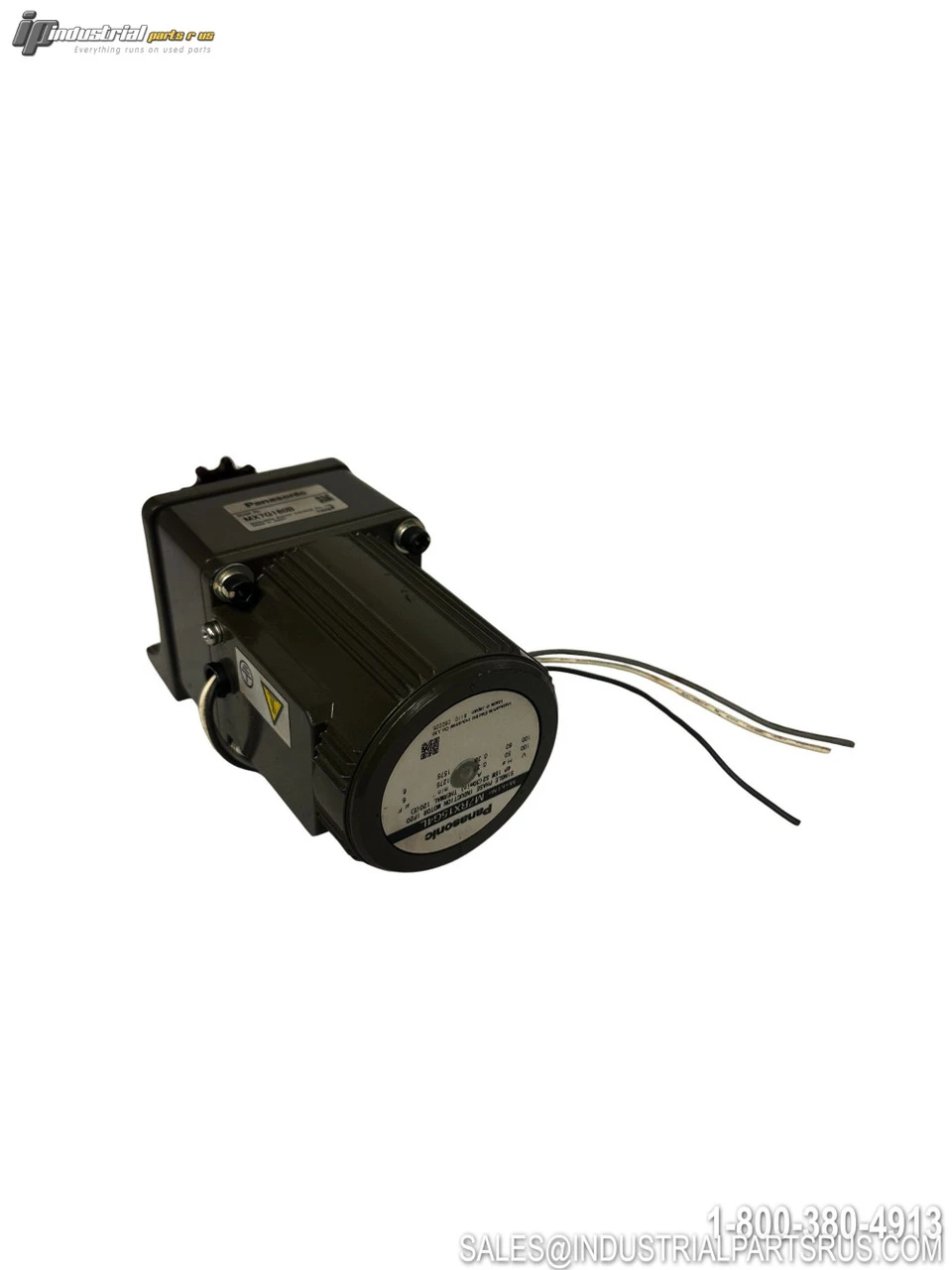

This Panasonic M7RX15G4L is a compact 15-watt single-phase AC induction motor paired with an MX7G180 gearhead. The motor features IP20 protection rating and operates on 100V at 50/60Hz frequency. The integrated MX7G180 gearbox provides a 180:1 reduction ratio with ball bearing construction for reliable operation.
Specification
Value
Brand
Panasonic
Model/Part Number
M7RX15G4L w/ MX7G180
Motor Type
AC Induction Motor
Power Rating
15W
Phase
Single Phase
Voltage
100V
Frequency
50/60Hz
Current
0.37/0.38 Amp
Motor Speed
1275/1575 RPM
Poles
4
Enclosure Type
IP20
Capacitor
6 uF
Gearbox Model
MX7G180
Reduction Ratio
180:1
Gearbox Bearing Type
Ball Bearing
Country of Origin
Japan
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI0853
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 0.37/0.38 A
Manufacturer: Panasonic
Shaft Diameter: 8 mm
Enclosure Type: IP20
Part Number: M7RX15G4L W/ MX7G180
Shelf: H-2
Model: M7RX15G4L W/ MX7G180
MPN: M7RX15G4L W/ MX7G180
Type: AC Motor
