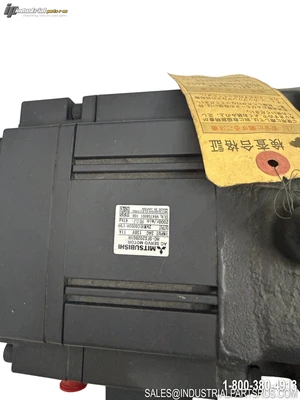

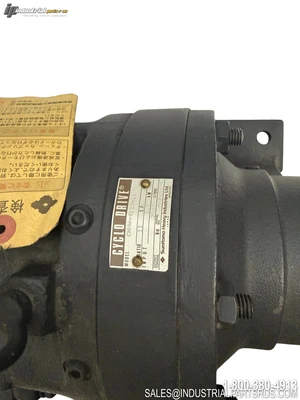

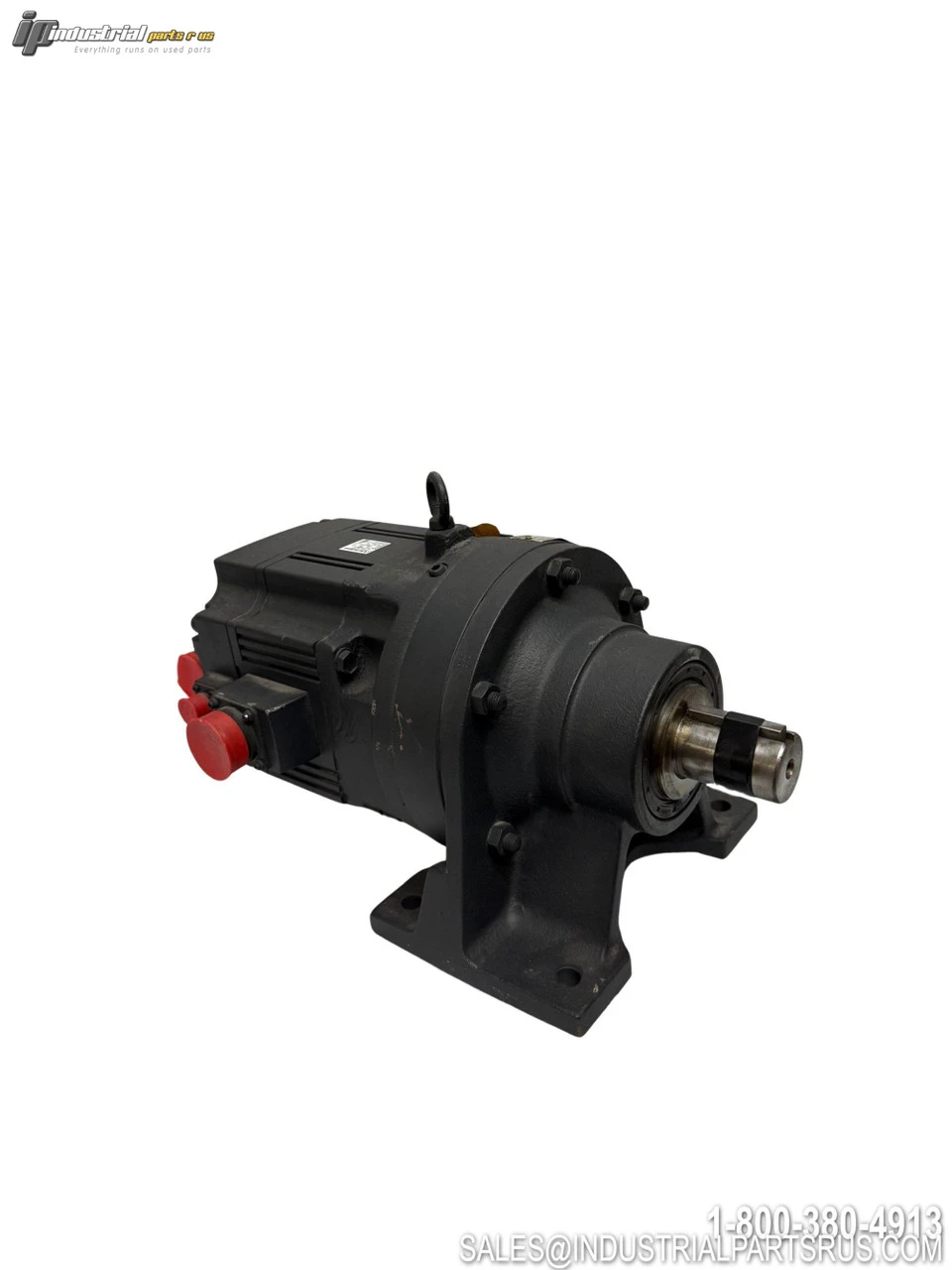

USED MITSUBISHI HC-SFS202BG1H
Overview
Description
The Mitsubishi HC-SFS202BG1H is a high-performance AC servo motor featuring an integrated 1:6 reduction gearbox and electromagnetic brake. This discontinued servo motor from the HC-SFS series delivers 2kW of rated power and is designed for precision motion control applications in industrial automation systems.
Specification
Value
Brand
Mitsubishi
Model/Part Number
HC-SFS202BG1H
Type
AC Servo Motor
Series
HC-SFS (MELSERVO J2S)
Rated Output Power
2kW (2000W)
Rated Speed
2000 RPM
Voltage
200VAC
Rated Current
11A
Rated Torque
9.55 Nm
Encoder Resolution
17-bit (131072 ppr)
Brake
Electromagnetic Brake
Reduction Ratio
1/6
Shaft Type
Straight with Key
Protection Rating
IP65
Mounting
176x176mm Flange
Operating Temperature
0°C to +40°C
Inertia Type
Medium Inertia
Production Status
Discontinued
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 100.00 LBS | 100.00 LBS |
|---|
SKU: AI0751
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 100.00 LBS
Width: 14.00
(in)
Height: 14.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Stall Torque: 28.55 Nm
Manufacturer: Mitsubishi
Part Number: HC-SFS202BG1H
Shelf: H-4
Model: HC-SFS202BG1H
MPN: HC-SFS202BG1H
Type: AC Servo Motor
