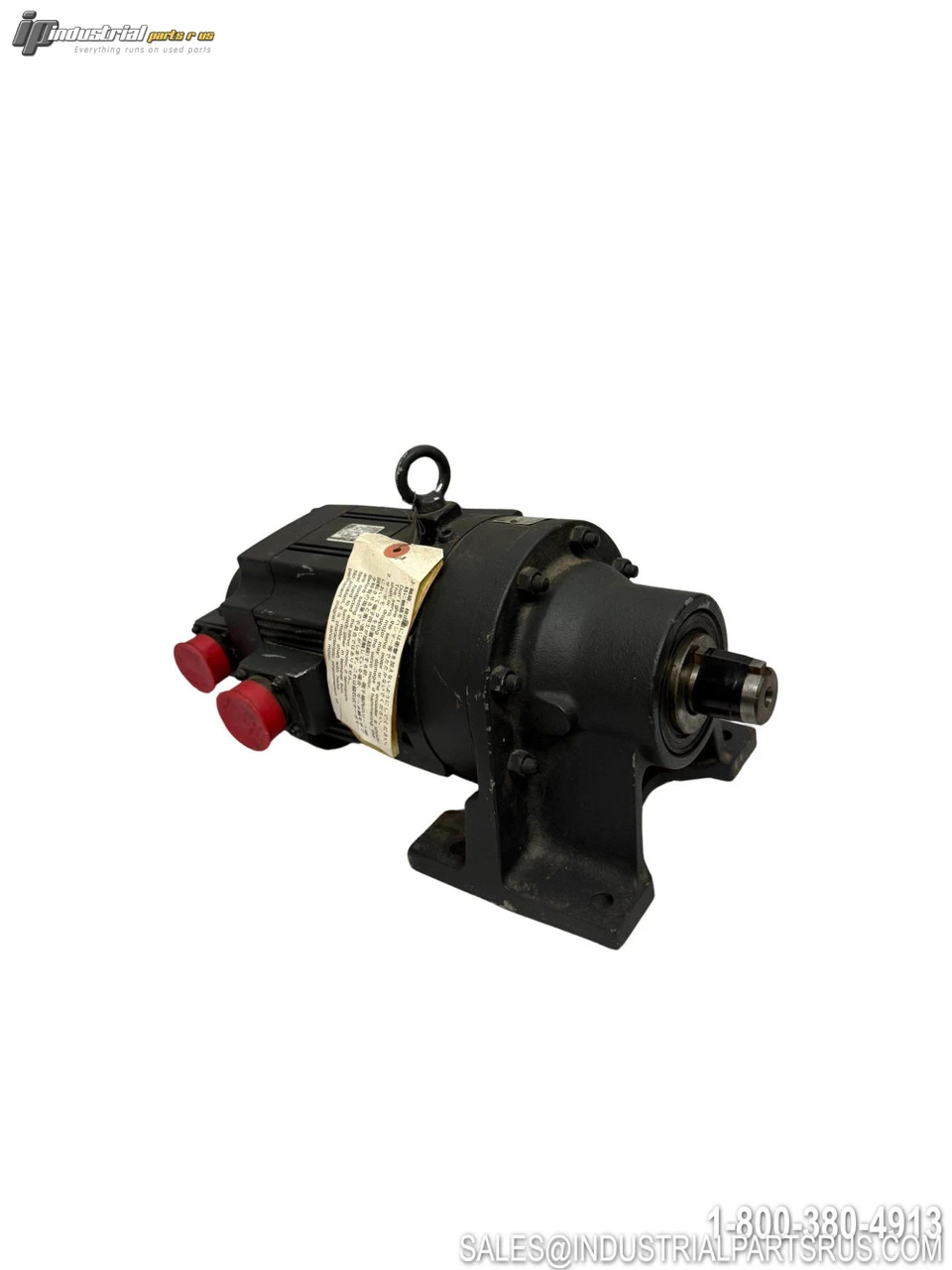

USED MITSUBISHI HC-SFS52BG1H
Overview
Description
The Mitsubishi HC-SFS52BG1H is a high-performance AC servo motor from the MELSERVO J2S series, designed for precision positioning and smooth speed control in industrial automation applications. This brushless servo motor features a 17-bit absolute position encoder and medium inertia characteristics, making it suitable for a wide range of motion control applications.
Specification
Value
Brand
Mitsubishi
Model/Part Number
hc-sfs52bg1h
Series
MELSERVO J2S
Motor Type
AC Servo Motor
Rated Output Power
500W / 0.5kW
Rated Speed
2000 RPM
Rated Current
3.2A
Supply Voltage
200V AC Class
Rated Torque
2.39Nm
Feedback Type
17-bit Absolute Encoder
Encoder Resolution
131,072 PPR
Shaft Type
Straight Shaft
Protection Rating
IP65
Inertia Type
Medium Inertia
Compatible Servo Amplifier
MR-J2S-60A/B/CP/CL
Operating Temperature
0°C to +40°C
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 55.00 LBS | 55.00 LBS |
|---|
SKU: AI0844
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 55.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 18.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Mitsubishi
Shaft Diameter: 24 mm
Enclosure Type: IP65
Part Number: HC-SFS52BG1H
Shelf: H-4
Model: HC-SFS52BG1H
MPN: HC-SFS52BG1H
Type: AC Servo Motor
