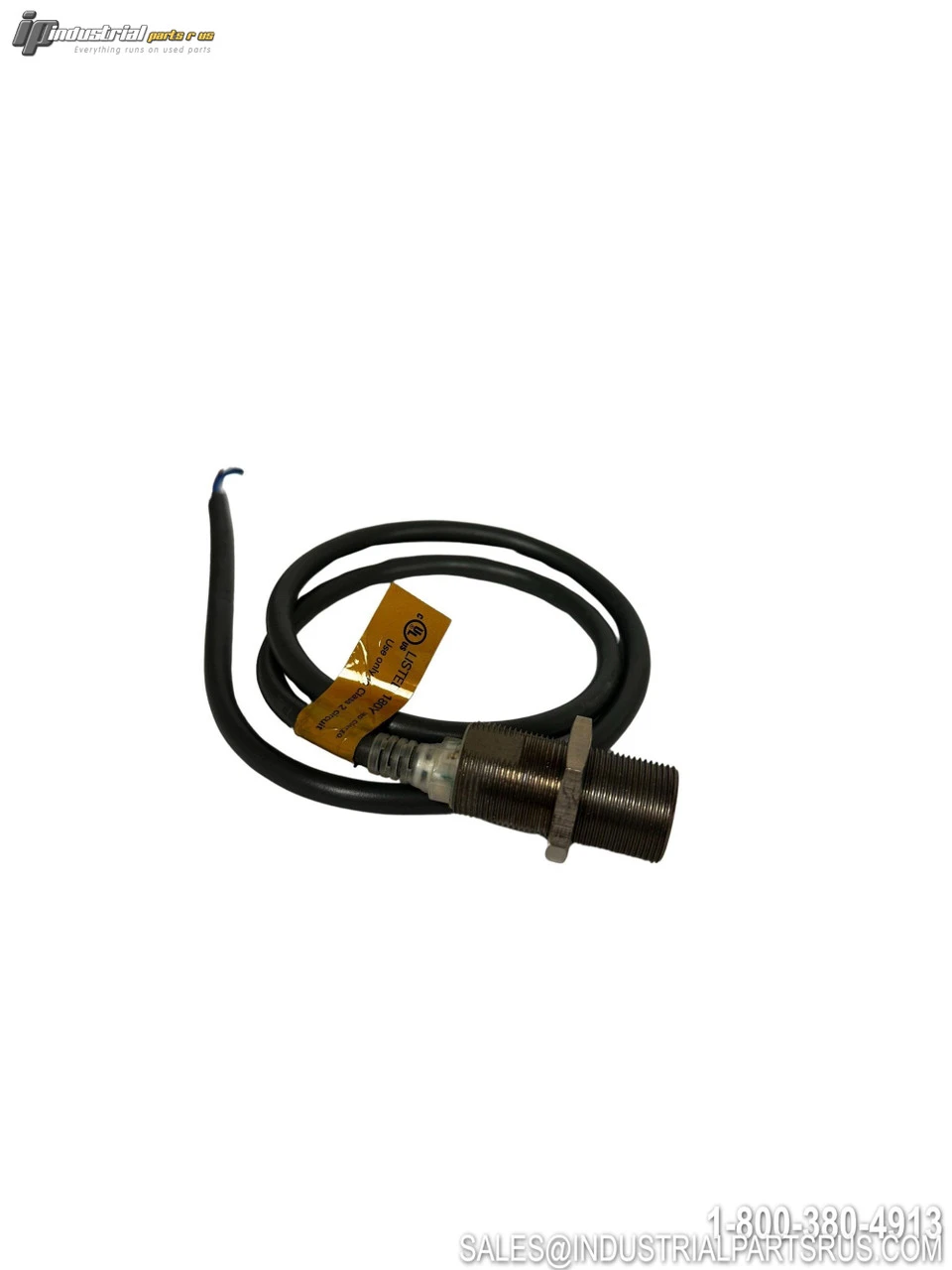

USED OMRON E2E-X7D1-N

The OMRON E2E-X7D1-N is a DC 2-wire inductive proximity sensor designed for detecting ferrous metals in industrial automation applications. This shielded cylindrical sensor features a 7mm sensing range and M18x1 threaded mounting for easy installation in tight spaces.
Specification
Value
Brand
OMRON
Model/Part Number
E2E-X7D1-N
Sensor Type
Inductive Proximity Sensor
Sensing Range
7mm ±10%
Thread Size
M18x1
Housing Diameter
18mm
Overall Length
55mm
Threaded Length
38mm
Supply Voltage
12-24 VDC (nominal)
Operating Voltage Range
10-30 VDC
Output Type
DC 2-Wire, NO (Normally Open)
Switching Capacity
3-100 mA
Response Frequency
500 Hz (max)
Leakage Current
0.8 mA
Residual Voltage
3V (at 100mA, 2m cable)
Setting Distance
0-5.6mm
Standard Sensing Object
Iron 18x18x1mm
Housing Material
Nickel-plated Brass
Sensing Surface
PBT (Polybutylene Terephthalate)
IP Rating
IP67
Operating Temperature
-25°C to +70°C
Connection Type
Pre-wired (Flying Leads)
Mounting Type
Flush (Shielded)
Series
E2E
We warranty all items for 30 days from date of purchase.

SKU: AI0909
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: DC 2-Wire NO
Sensor Type: Inductive
Operating Distance: 7mm ±10%
Full Load Amps: 0.8 mA
Manufacturer: Omron
Part Number: E2E-X7D1-N
Shelf: N-5
Model: E2E-X7D1-N
MPN: E2E-X7D1-N
Type: Inductive Proximity Sensor
