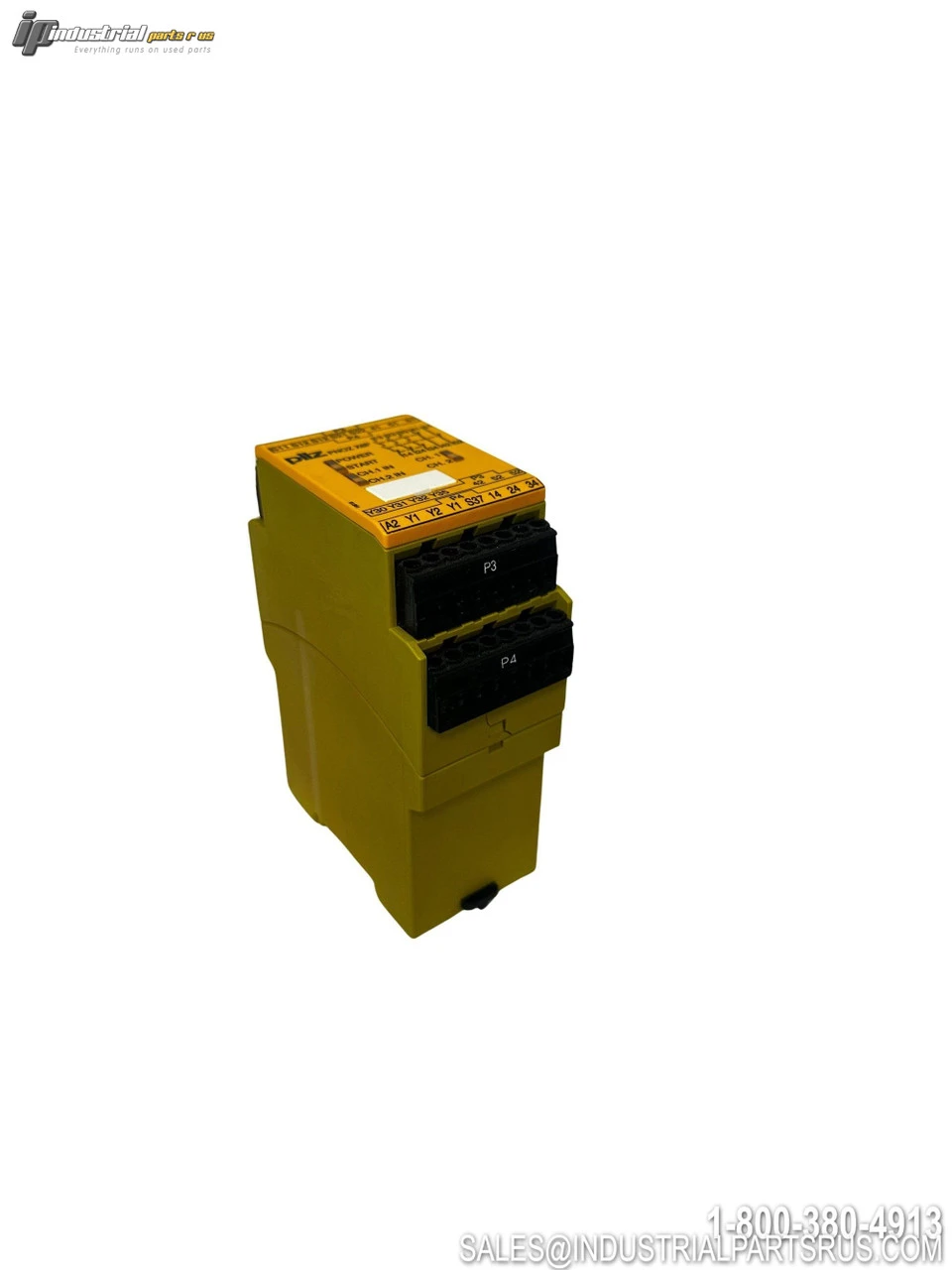

USED PILZ PNOZ X8P

The Pilz PNOZ X8P is a compact safety relay designed for monitoring emergency stop pushbuttons, safety gates, and light barriers in industrial applications. This single or dual-channel safety relay provides robust protection with automatic/monitored reset functionality and meets the highest safety standards including SIL3/PLe Category 4.
Specification
Value
Brand
Pilz
Model/Part Number
PNOZ X8P
Product Type
Safety Relay
Supply Voltage
24VDC (20.4-26.4VDC)
Power Consumption
2.5W
Safety Outputs
3 N/O (Normally Open)
Auxiliary Outputs
2 N/C (Normally Closed)
Semiconductor Outputs
2 SO (24VDC, 20mA)
Contact Rating (DC1)
8A at 24VDC
Contact Rating (AC1)
8A at 240VAC
Contact Rating (DC13)
7A at 24VDC
Contact Rating (AC15)
5A at 230VAC
Digital Inputs
2 x 24VDC, 45mA
Safety Level
SIL3 / PLe / Cat.4
PFH Value
2.31E-09
Width
45mm
Dimensions (H x W x D)
101 x 45 x 121mm
Mounting Type
DIN Rail
Connection Type
Plug-in Screw Terminals
Operation Mode
Single/Dual Channel
Reset Type
Automatic/Monitored
LED Indicators
Power, Start, CH.1 IN, CH.2 IN, CH.1, CH.2
Pilz Part Number
777760
We warranty all items for 30 days from date of purchase.

SKU: AI0881
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: DIN Rail
Current Rating: 8 A
Application: Emergency Stop, Safety Gate Monitor
Manufacturer: Pilz
Part Number: PNOZ X8P
Shelf: K-41
Model: PNOZ X8P
Coil Voltage: 24 VDC
MPN: PNOZ X8P
Type: Safety Relay
