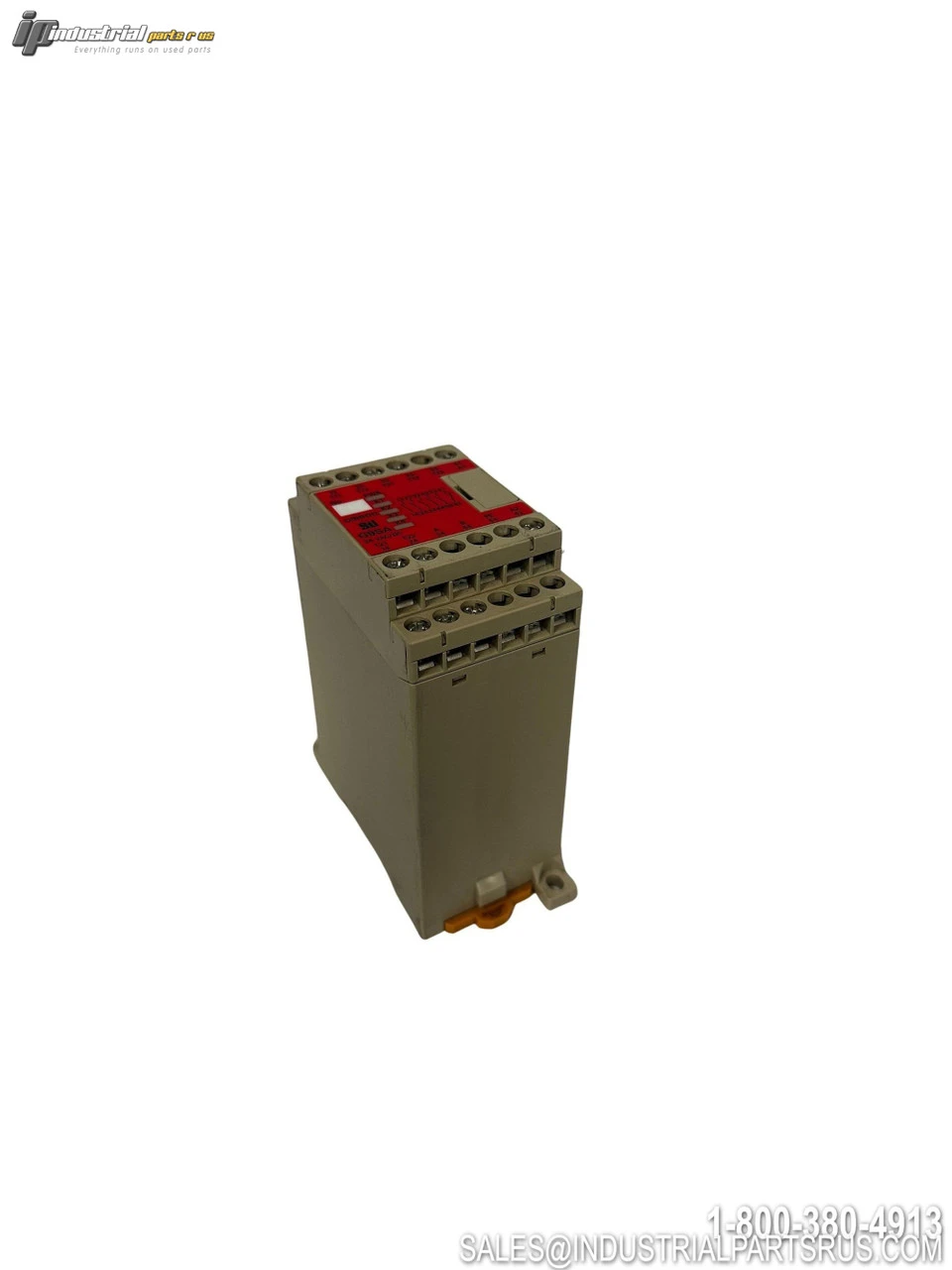

USED OMRON OMRON G9SA-501

The OMRON G9SA-501 AC/DC24 is a professional safety relay unit designed for emergency stop applications and safety control systems. This dual channel safety relay features 5PST-NO contacts rated at 5A, accepts 24VAC/DC power supply, and mounts on standard DIN rail. The unit provides comprehensive safety monitoring with support for 1 or 2 channel inputs and includes manual/auto reset functionality.
Specification
Value
Brand
OMRON
Model/Part Number
G9SA-501
Product Series
G9SA
Supply Voltage AC
24VAC (50/60Hz)
Supply Voltage DC
24VDC
Contact Configuration
5PST-NO
Contact Rating
5A
Safety Output Contacts
13-14, 23-24, 33-34, 43-44, 53-54
Auxiliary Contact
61-62 (SPST 2NC)
Input Channels
Dual Channel (1 or 2 channel)
Input Type
PNP Common Input
Safety Input 1
T11-T12
Safety Input 2
T21-T22-T23
Feedback/Reset Input
T31-T32
Power Supply Input
A1-A2
Manual/Auto Selector
A-B
Response Time (OFF→ON)
30ms max
Release Time (ON→OFF)
10ms max
Contact Resistance
100mΩ max
Insulation Resistance
100MΩ min (at 500VDC)
Dielectric Strength
2500VAC (1 min)
Width
45mm
Mounting Type
DIN Rail
Safety Category
EN ISO 13849-1 PL e/Category 4
Coil Current
40mA
Application
Emergency Stop Safety Applications
We warranty all items for 30 days from date of purchase.

SKU: AI0847
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 40mA
Manufacturer: Omron
Part Number: G9SA-501
Shelf: K-3
Model: OMRON G9SA-501
MPN: G9SA-501
Type: Safety Relay
