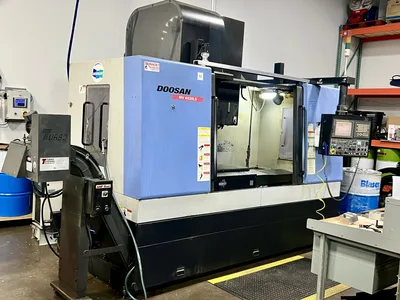

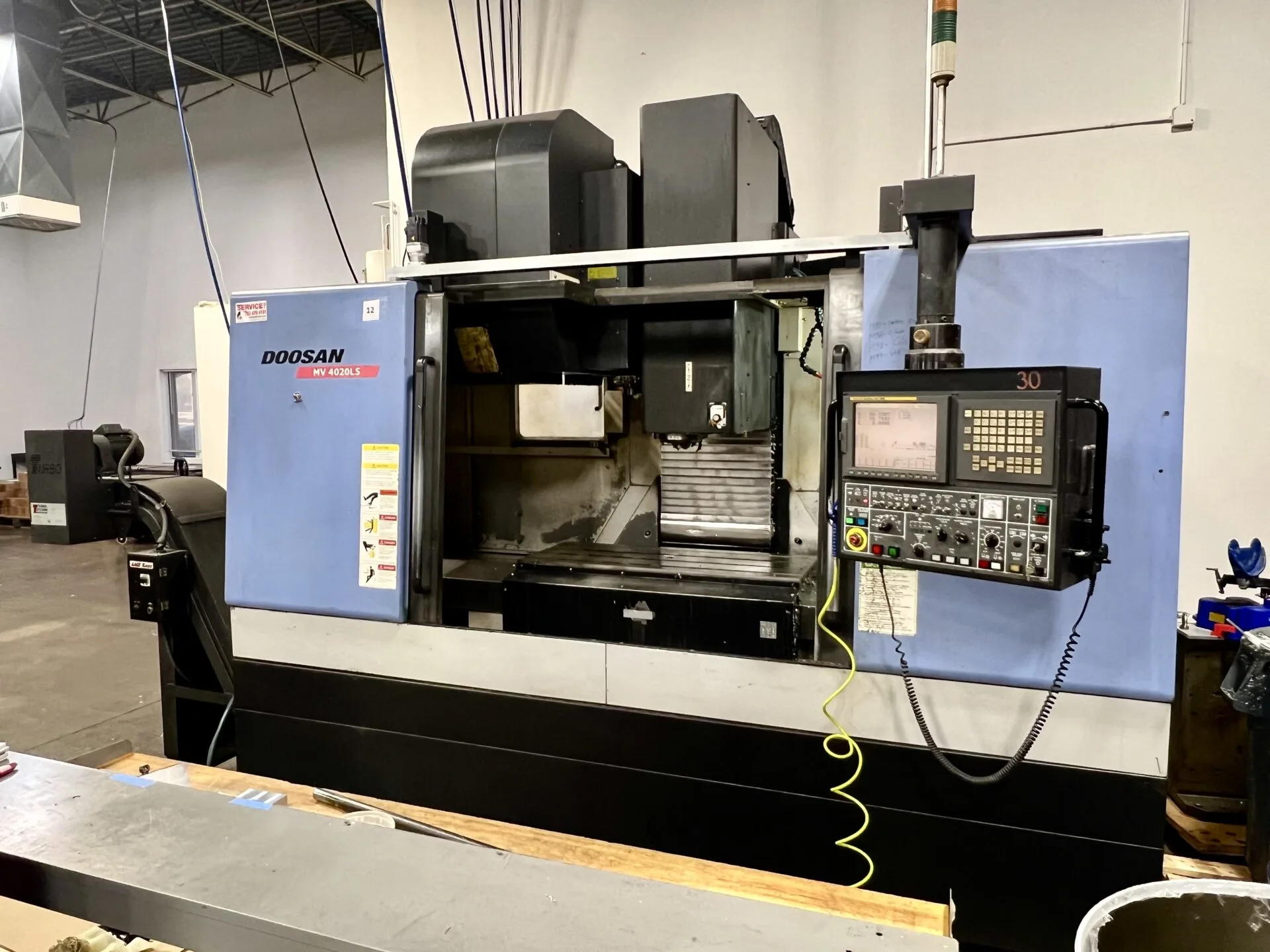

2007 DOOSAN DMV-4020LS

Fanuc 21iMB, 40.20.25", 12000 RPM, BT 40, 20HP, 30 Tools, TSC, Chip

X-Axis: 40.1"
Y-Axis: 20.1"
Z-Axis: 24.6"
Table Size: 47.2" x 19.7"
Spindle Speed: 12,000 RPM
Spindle Taper: BT 40
Spindle Motor: 20 HP
Tools: 30
Table Load Capacity: 1760 lbs.
Rapid Traverse Rates: 1181 / 787 IPM
Max Tool Diameter: 4.9" / 8.6"
Max Tool Length: 9.8"
Max Tool Weight: 26.4 lbs.
Machine Dimensions(L x W x H): 163" x 100" x 120"
Machine Weight: 16,000 lbs.
Spindle Nose to Table Top: 7.9" - 32.4"

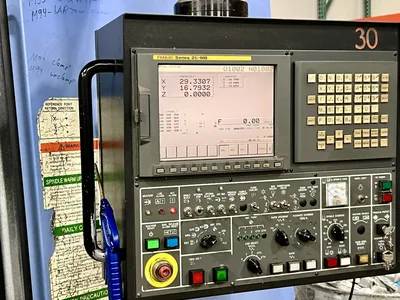

FANUC 21iMB CNC CONTROL
10.4" Color LCD
30 Position Side Mount Tool Changer
Through Spindle Coolant
Auto Door
Rigid Tapping

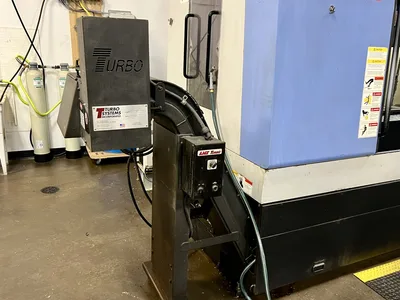

Chip Conveyor (Left Side Exit)
Remote Manual Pulse Generator
Three Color Tower Light
