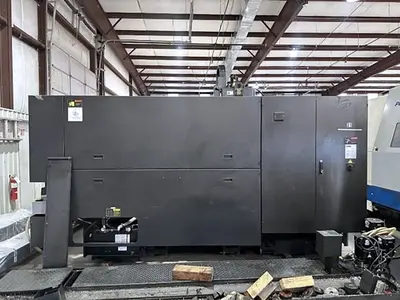

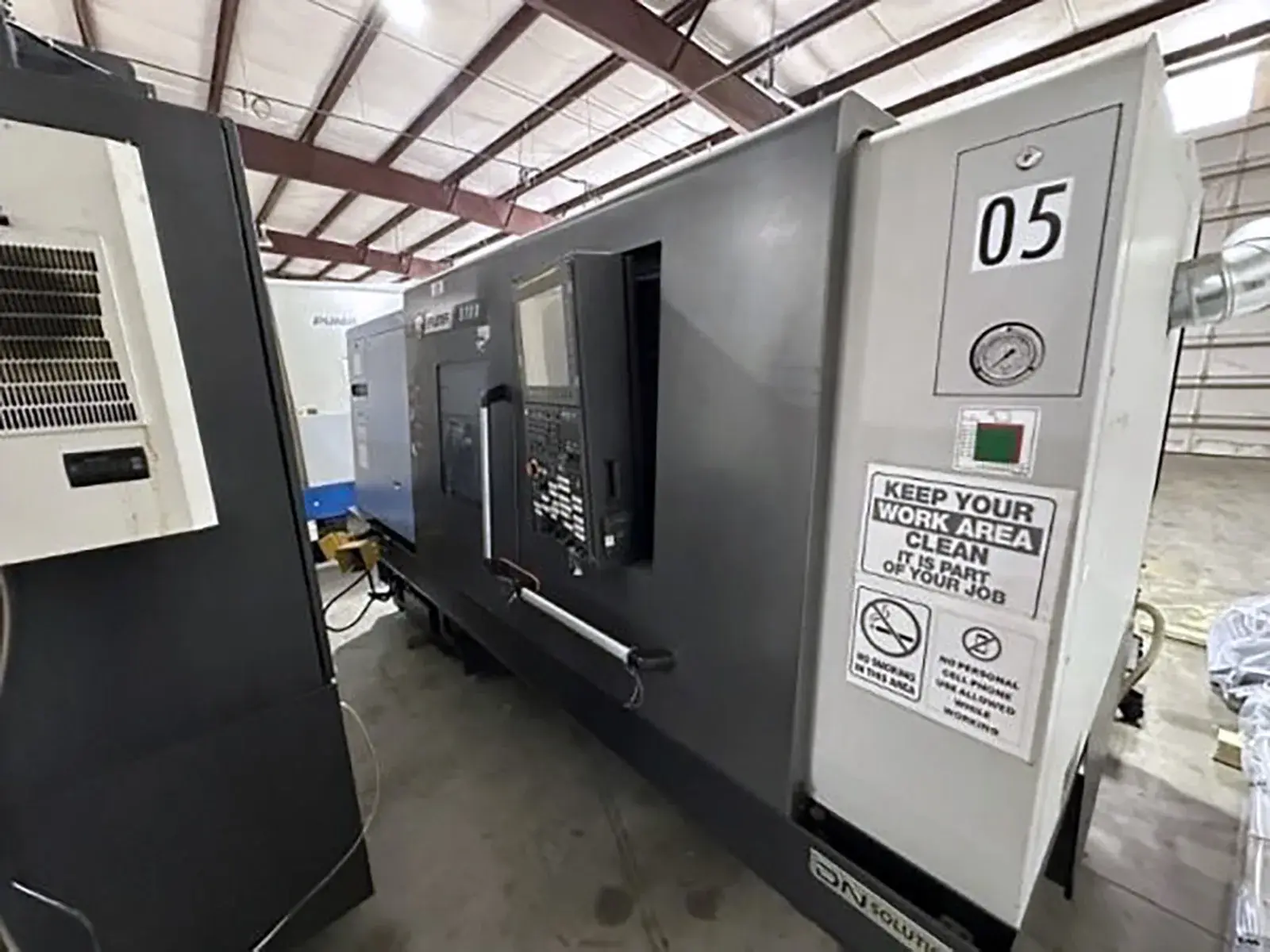

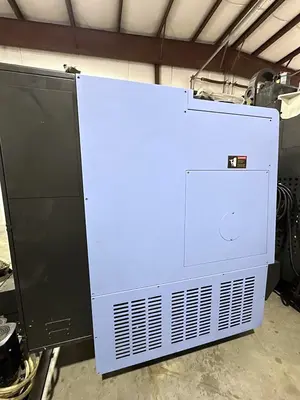

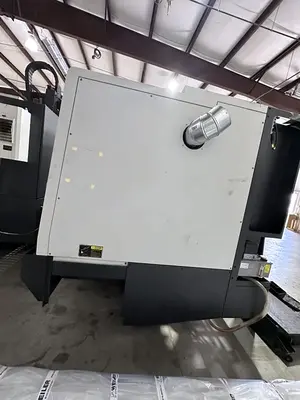

USED 2023 DOOSAN 5100B
Overview
24" Chuck
The 2023 Doosan 5100B CNC Lathe with Fanuc I-Series Control is a heavy-duty horizontal turning center built for precision machining of large, complex parts. Ideal for heavy cutting, turning, drilling, and threading of tough materials like steel and titanium. Perfect for oil & gas, aerospace, automotive, and power generation industries producing durable, high-tolerance components.
Specs
Swing over Bed: 35.4"
Machining Length: 44.4"
DISTANCE BETWEEN CENTERS: 46.4"
Chuck Size 1: 24"
Spindle Nose 1: A1 - 15
Spindle Bar Capacity 1: 66.25"
Turning Diameter, Shaft Diameter: 27.2"
Spindle Speeds 1: 1,500 RPM
Spindle Horsepower 1: 60 hp
Spindle Bore Diameter 1: 7.12"
X1 - Axis Travel: 14.3"
Z1 - Axis Travel: 44.39"
Rapid Traverse Rate - X1: 630 in/min.
Rapid Traverse Rate - Z1: 790 in/min.
Spindle Torque: 2978
Gear Ranges: 2

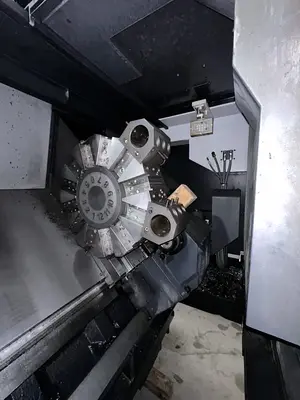

Turret Configuration 1: 12
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT 6
Tailstock Quill Travel: 4.7"
Programmable Tailstock: YES
# Axis: 2
Bar Capacity: 6.6"
Tailstock: Yes
Live Tooling: No
Sub Spindle: No
Control: CNC (DOOSAN FANUC SERIES I CNC CONTROL)
Weight: 23,369
Equipped With

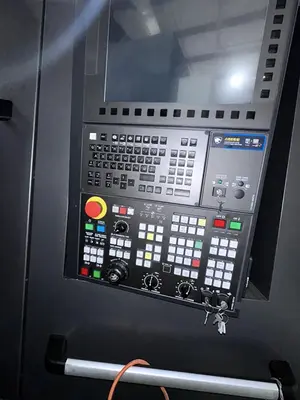

FANUC I SERIES CNC COLOR CONTROL
MANUAL GUIDE I
PROGRAMMABLE TAILSTOCK
TOOL SETTER PROBE

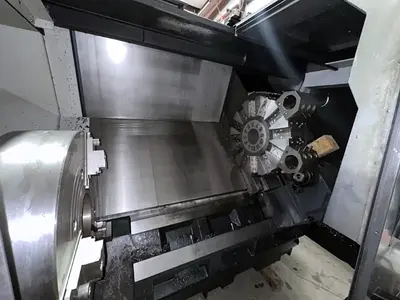

24" 3-JAW HYDRAULIC CHUCK WITH 6.625" THRU HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
