HAAS VR8 5-Axis VMC – 2020
X 64″
Y 40″
Z 42″
# AXIS 5
POWER 24 hp
RPM 20,000 RPM
# ATC 50
TAPER HSK 63

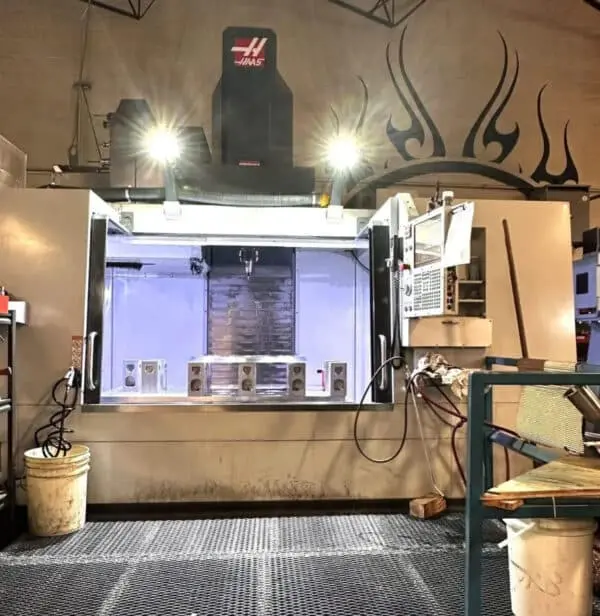

Haas VR-8 5 Axis Machining Center (2020)
X Axis 64.00 in 1626 mm
Y Axis 40.00 in 1016 mm
Z Axis 42.00 in 1067 mm
Spindle S.A.E METRIC
Max Rating 24.0 hp 18.0 kW
Max Speed 20000 rpm 20000 rpm
Max Torque 10.5 ft-lbf @ 12000 rpm 14.3 Nm @ 12000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Taper HSK-A63 HSK-A63
Bearing Lubrication Grease Packed Grease Packed
Cooling Liquid Cooled Liquid Cooled
B Axis – Tilt S.A.E METRIC
Travel 120 ° to 120- ° 120 ° to 120- °
Max Speed 112 °/sec 112 °/sec
Max Torque 295 ft-lbf 400 Nm
Brake Torque 403 ft-lbf 547 Nm
C Axis – Rotation S.A.E METRIC
Travel ± 245 ° to 245- ° 245 ° to 245- °
Max Speed 208 °/sec 208 °/sec
Max Torque 264 ft-lbf 359 Nm
Brake Torque 442 ft-lbf 600 Nm
Table S.A.E METRIC
Length 64.0 in 1626 mm
Width 36.0 in 914 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 50+1 50+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 12 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions – Shipping S.A.E METRIC
Domestic Pallet 195.0 in x 120.0 in x 142.0 in 495 cm x 305 cm x 361 cm
Export Crate 195.0 in x 123.0 in x 144.0 in 495 cm x 313 cm x 366 cm
Weight 24800 lb 11250.0 kg
Domestic Pallet w/EC Option 195 in x 120 in x 143 in 495 cm x 305 cm x 363 cm
Export Crate w/EC Option 195 in x 123 in x 147 in 495 cm x 312 cm x 373 cm
Weight w/EC Option 25100 lb 11385 kg
Electrical Specification S.A.E METRIC
Spindle Speed 20000 rpm 20000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Spindle Power 24.0 hp 18.0 kW
Input AC Voltage (3 Phase) – Low 220 VAC 220 VAC
Full Load Amps (3 Phase) – Low 70 A 70 A
Input AC Voltage (3 Phase) – High* 440 VAC 440 VAC
Full Load Amps (3 Phase) – High* 35 A 35 A
Coolant Through Spindle
• 2-Axis Gimbaled Spindle Head
• 24-HP (17.9 kW) 20,000-rpm HSK-A63 integral-motor spindle
• Heavy-Duty Sheet Metal Enclosure
• Rugged Cast-Iron Construction
• 50+1 Tool Side-Mount Tool Changer
• HSK-A63 Spindle Taper
• Extended Z-Axis Clearance 8” column
• 95-Gallon Coolant Tank, ¾ HP pump
• Chip Auger
• Window Blast
• Auto Door
• CNC Control Cabinet Cooler
• Wireless Intuitive Probing System, Renishaw
• Dynamic Work Offsets and Tool Center Point Control
• Remote Jog Handle with touchscreen display
• Rigid Tapping
