USED 2025 LVD PHOENIX +TAS FL-4020

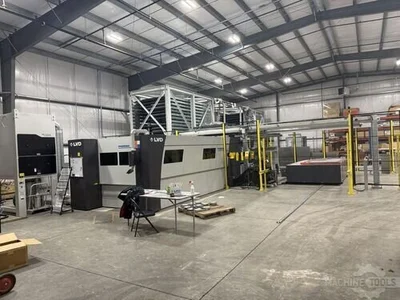

LVD Phoenix +TAS FL-4020 12kW Fiber Laser w/ Automation (2025)

General Info

Stock #: 121260006
Brand: LVD
Model: Phoenix +TAS FL-4020
Year: 2025
Loading Fee: Rigging Required

Specifications

Maximum sheet size: 160" x 80"
X-axis travel: 165"
Y-axis travel: 81"
Z-axis travel: 5.11"
Maximum sheet weight on table: 3527 lbs
Table changeover time: 39 sec.
Maximum positioning speed X-Y: 5511"/min
Maximum positioning speed Z: 30 m/min
Repetitive accuracy: +/- 0.001"
Positioning accuracy*: +/- 0.002"

Equipped With

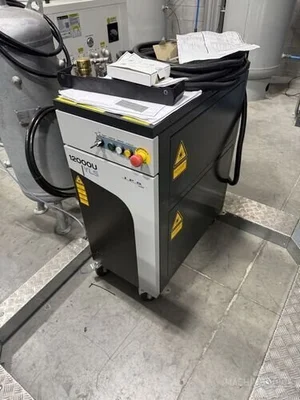

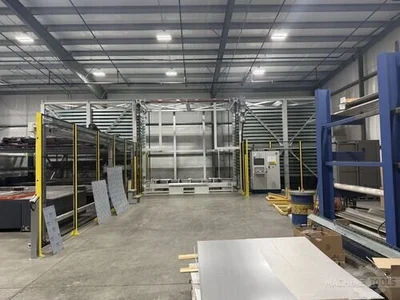

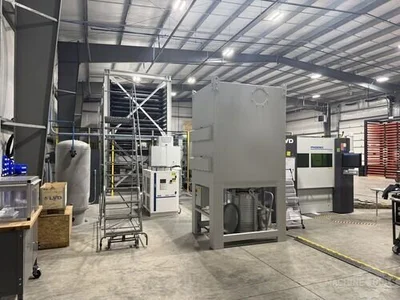

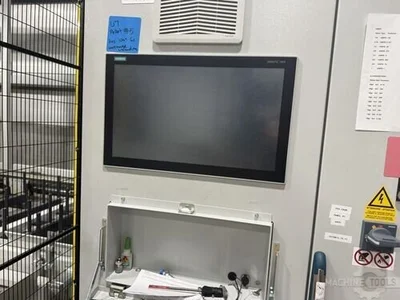

Dust Collection System, Scrap Conveyor, Touch-L Control, 12kW IPG Laser Source, Tower Automation System (TAS), Load-Unload System

Additional Info
Can be inspected upon request. Rough estimate for decom and loading is $70k through LVD
