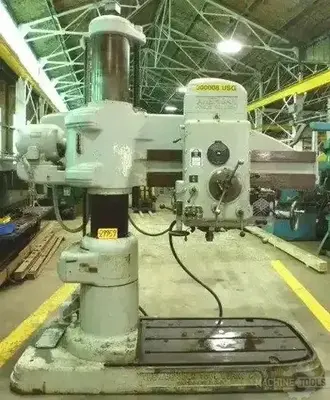

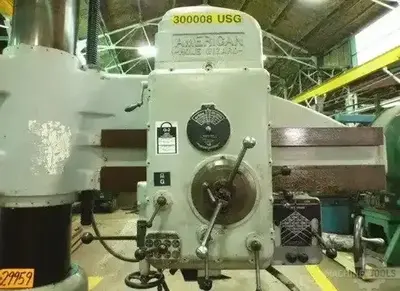

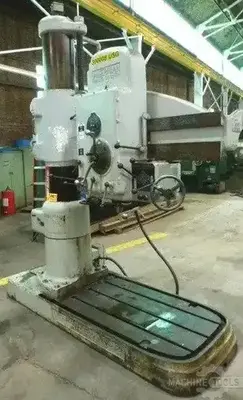

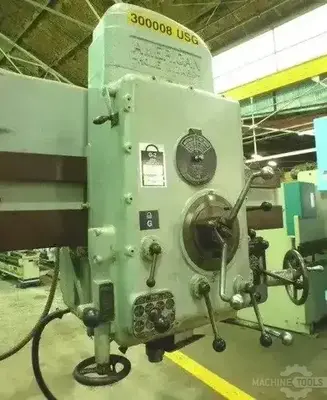

American Hole Wizard 4' X 13" Radial ARM Drill
| Arm Length | 4' | 1.2 m |
| Column Dia. | 13" | 330.2 mm |
Length of Arm: 4'
Diameter of Column: 13"
Drills to Center of Circle on Base: 96"
Spindle to Base: 6" - 60"
Spindle Speeds: 25 - 2000 RPM
Spindle Travel: 18"
Spindle Taper: #5MT
Traverse of Drill Head on Arm: 34-3/4"
Traverse of Arm on Column: 36"
Number of Spindle Feeds: 16
Tap Leads, Threads Per Inch: 8, 11-1/2, 14, 18
Range of Feeds: .003" - .125"
Height of Base: 8"
Electricals: 220/440/3/60
10 HP Motor
Coolant Pump in Base
Power Elevation
Power Head Traverse
Power Clamping
