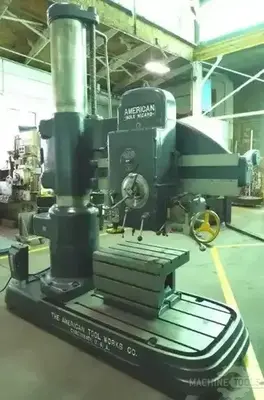

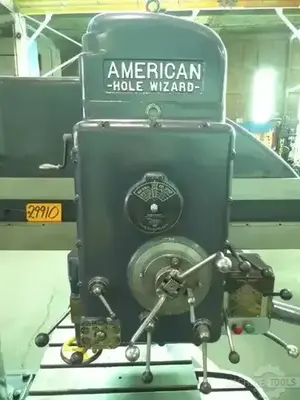

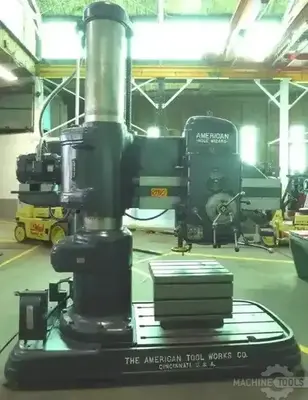

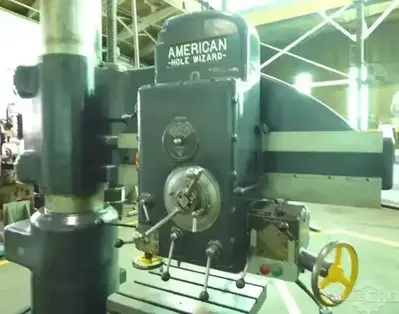

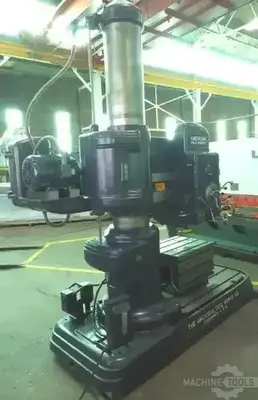

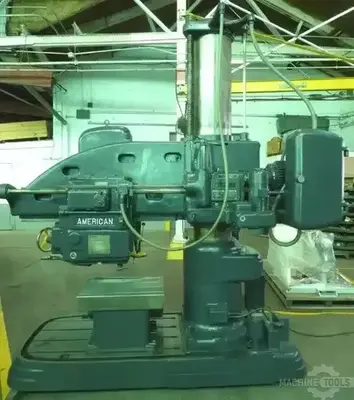

USED AMERICAN TOOL HOLE WIZARD

American Hole Wizard 4' X 15" Radial ARM Drill

Arm Length: 4'
Column Diameter: 15"
Drills to Center of Circle on Base: 96"
Maximum Distance, Spindle to Base: 66"
Minimum Distance, Spindle to Base: 8.5"
Traverse of Drill Head on Arm: 34"
Traverse of Arm on Column: 39.5"
Table Size: 30" L x 24" W x 20" H
Height of Base: 9"
Spindle Travel: 18"
Spindle Taper: No. 5 Morse
Spindle Speeds (32 settings): 20 - 1,600 RPM

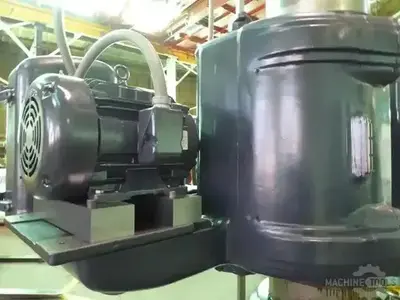

Spindle Motor: 20 HP
Spindle Feeds: 16
Range of Feeds: .003" - .125"
Tap Leads, Threads Per Inch: 8, 11.5, 14, 18

Coolant Pump in Base
Power Elevation
Power Head Traverse
Power Clamping
