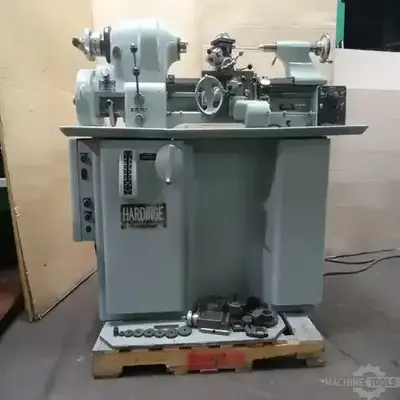

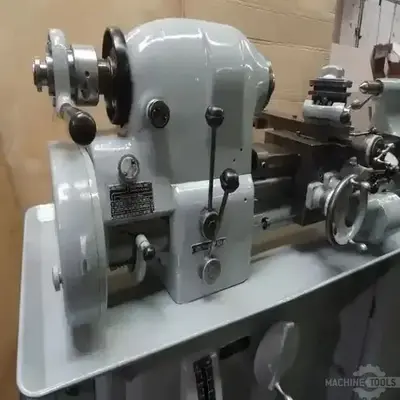

Hardinge HLV Super Precision Lathe
| Swing | 11" | 279.4 mm |
| Centers | 18" | 457.2 mm |
| Threading | INCH | INCH |
| RPM | 3000 | 3000 |
Max. Swing Over Bed: 11"
Max. Swing Over Carriage: 9"
Max. Swing Over Cross Slide: 5.75"
Compound Slide Travel: 3"
Distance Between Centers (Tailstock Flush): 18"
Distance Between Centers (Tailstock Overhung): 20"
Power Feed Range: 0.25 IPM - 7 PM
Longitudinal Feed Rate: 0.31 IPM - 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75"
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25"
Spindle Speeds (Variable): 125 - 3000 RPM
Spindle Nose: Hardinge Tapered
Spindle Construction
With Step Chucks: 1" - 6"
With Jaw Chucks: 5"
With Jaw Chucks Through Spindle: 1.15"
With Round 5C Hardinge Collets: 1.06"
With Hexagon 5C Hardinge Collets: 0.87"
With Square 5C Hardinge Collets: 0.75"
Range of Threads in Gear Box: 11 - 108
Number of Thread Changes in Gear Box: 27
Motor: 2-Speed, 530 / 1710 RPM
Electricals: 220V AC Only / 3 PH / 60 Hz / 3.4 Amps
Quick Acting Lever Type 5C Collet Closer
3-Jaw & 4-Jaw Chucks

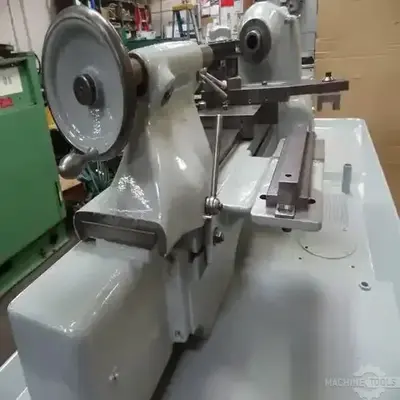

Tailstock
Taper Turning Attachment

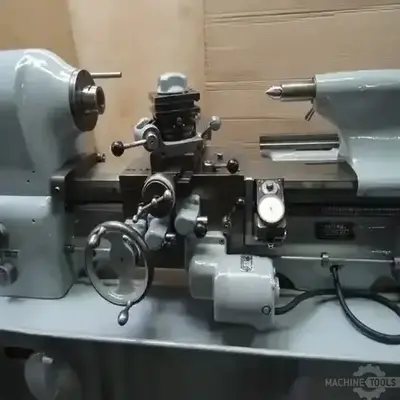

Micrometer Carriage Stop with Dial Indicator
Set of Gears
Accessories and Attachments
Operators Manuals
Cabinet Base
