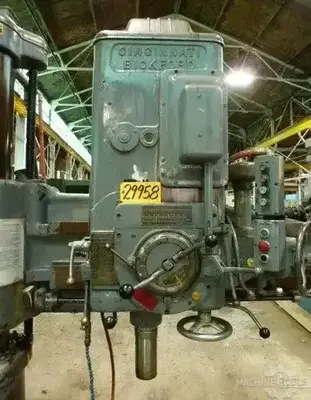

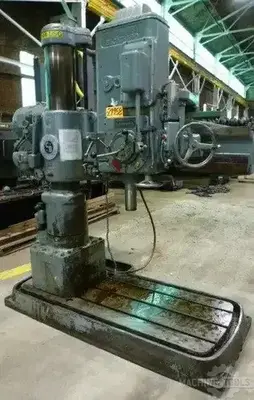

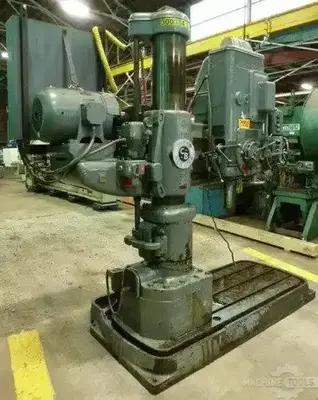

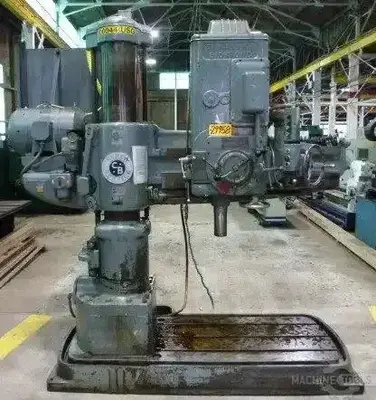

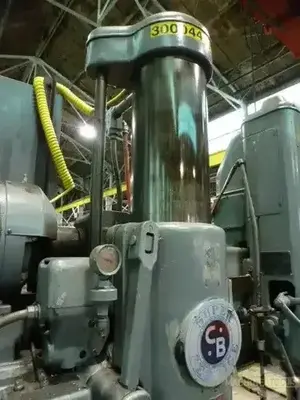

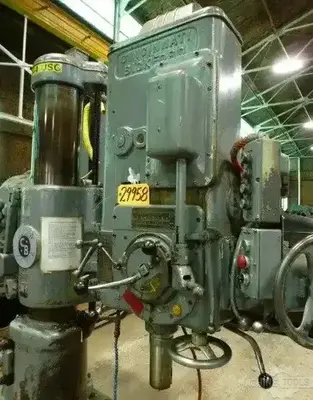

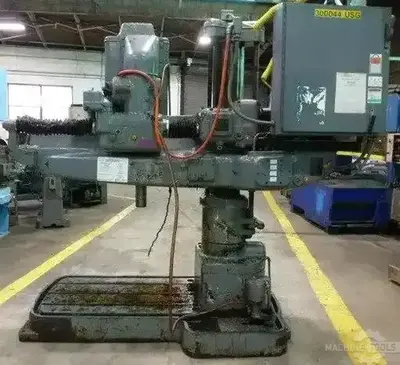

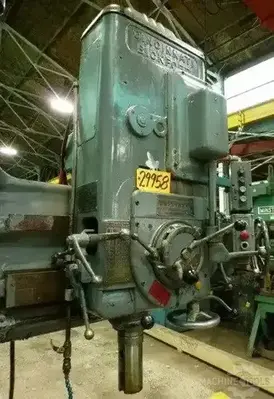

Cincinnati Bickford 2E 4' X 11" Radial Drill
| Arm Length | 5' | 1.5 m |
| Column Dia. | 11" | 279.4 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 27 | 27 |
Arm Length: 4'
Column Diameter: 11"
Working Surface Of Base: 59" x 36"
Drills In Plane Of Base To Center Of Circle: 8'
Distance From Center Of Column To Face Of Column: 9-1/8"
Minimum Distance Face Of Column To Spindle: 12-1/8"
Horizontal Traverse Of Head On Arm: 33-3/8"
Vertical Traverse Of Arm On Column: 25"
Spindle Speeds: 14 - 1500 RPM
Spindle Feeds: .004 IPR - .125 IPR
Tap Leads: 8 - 27 TPI
Spindle Stroke: 16"
Spindle Taper: #5MT
7.5 HP Motor
12" Riser Block
Power Column Clamping
Power Elevation
Coolant
