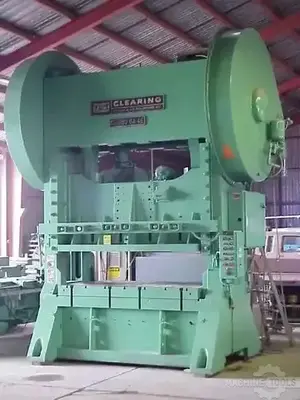

Clearing S2-250-84-48 Mechanical Straight-Side Double Crank Press
| Tonnage | 250 T | 226.796 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 32" | 812.8 mm |
| SPM | 30 | 30 |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 84" | 2,133.6 mm |
| Air Clutch (Yes/No) | YES | YES |
Capacity: 250 Ton
Stroke: 12"
Shut Height Over Bed (SDAU): 32"
Motorized Slide Adjustment: 11"
Bed Area: 84" L-R x 48" F-B
Window Opening: 18" L-R x 18" F-B
Slide Face Area: 84" L-R x 48" F-B (T-Slotted)
Speed: 30 SPM
Bed Height: 33-5/8"
Air Friction Clutch and Brake with Selector Controls
Arranged for (4) Knockouts F-B
Enclosed Gears Running in Oil
Tie Rod Construction
Flush Floor Design
(2) Air Counterbalance Cylinders to Slide
T-Slotted Bolster (6" Thick)
T-Slotted 10" Ram Adaptor
Automatic Lubrication System
AC Main Drive Motor
Electrical Controls
