USED 1991 FACCIN PPM

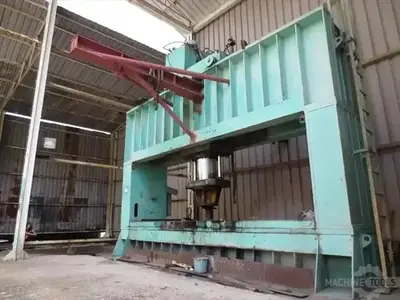

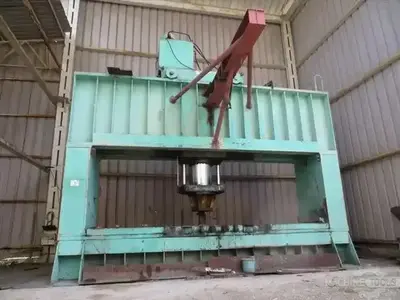

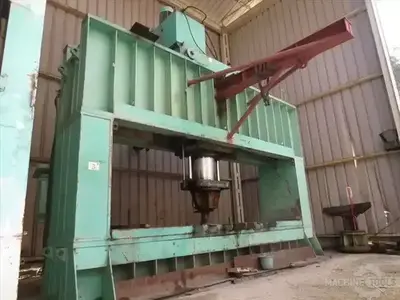

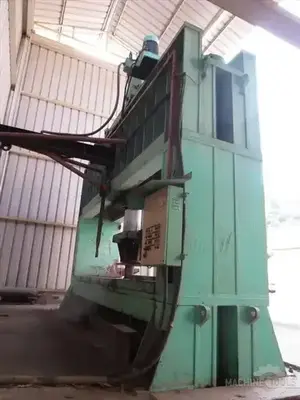

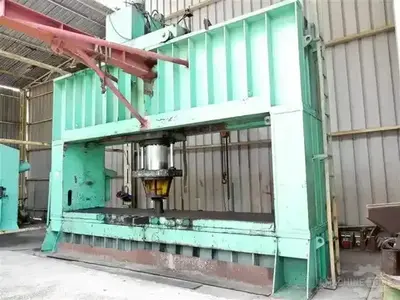

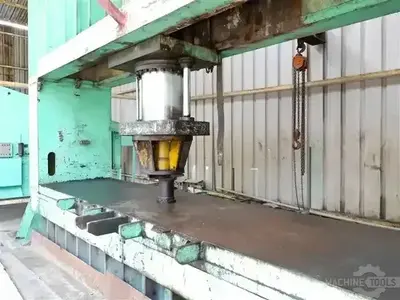

Faccin PPM 500 Ton Hydraulic Dishing Press

Tonnage Capacity: 550 Ton
Maximum Blank Diameter: 196.85"
Maximum Material Thickness: 1.57" Mild Steel
Form Holder Size: 197" x 47"
Slide Size: 37" x 25"
Slide Motion: 31.5"
Max Light Between the Uprights: 47.2"
Forward Speed: 100 IPM
Working Speed: 8 IPM
Return Speed: 190 IPM
Carriage Stroke: 158"
Carriage Moving Speed: 47 IPM

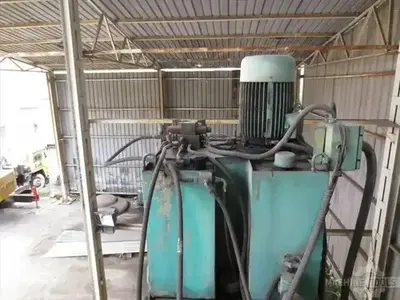

30 HP Main Motor

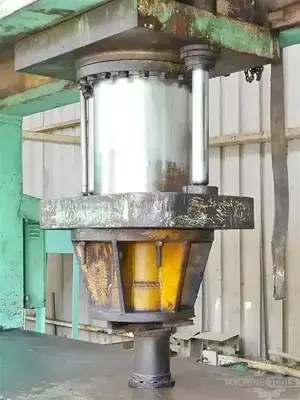

Hydraulic Cylinder Can Be Re-Positioned Along the Bed, Fixed in Center at Present

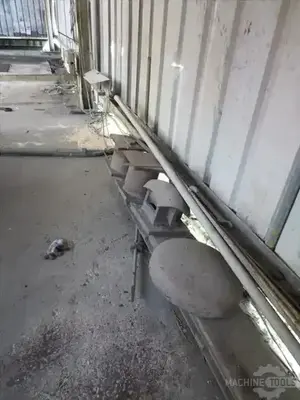

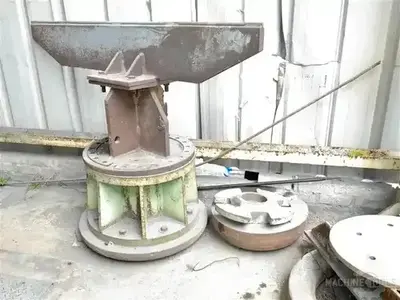

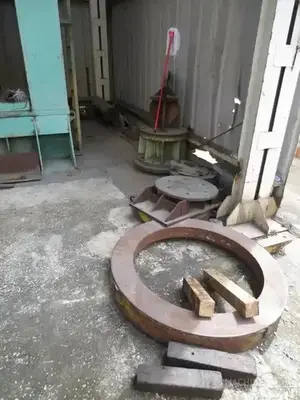

Includes Some Tooling
