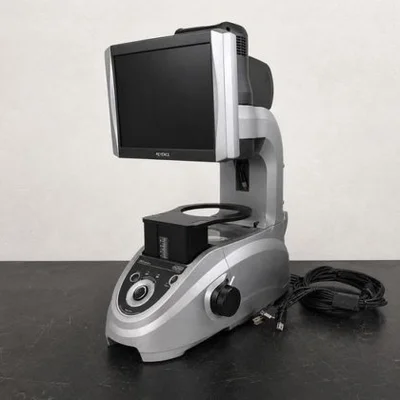

USED KEYENCE IM-6020

The Keyence IM-6020 Image Dimension Measuring System is a high-precision, non-contact optical metrology instrument. It uses advanced image processing and a telecentric lens to accurately measure complex geometrical features on parts. With fast “place and press” operation, it can measure dozens of dimensions in seconds, making it ideal for quality control in manufacturing, microfabrication, and inspection labs.

Key Highlights:

- Wide-field optic with a Ø 100 mm field of view for capturing large parts.- High-precision mode (Ø 25 mm) for detailed measurements with sub-micron resolution.
- Repeatability down to ±1 µm; accuracy as fine as ±2 µm in high-precision mode.
- Telecentric illumination (green LED for transparent parts, white LED ring) ensures uniform and accurate edge detection.
- 30 mm Z-stage travel supports varying part heights and allows 3D feature inspection.
- LAN and USB connectivity for data export and integration with inspection workflows.Show moreShow lessClick to Request More Info
