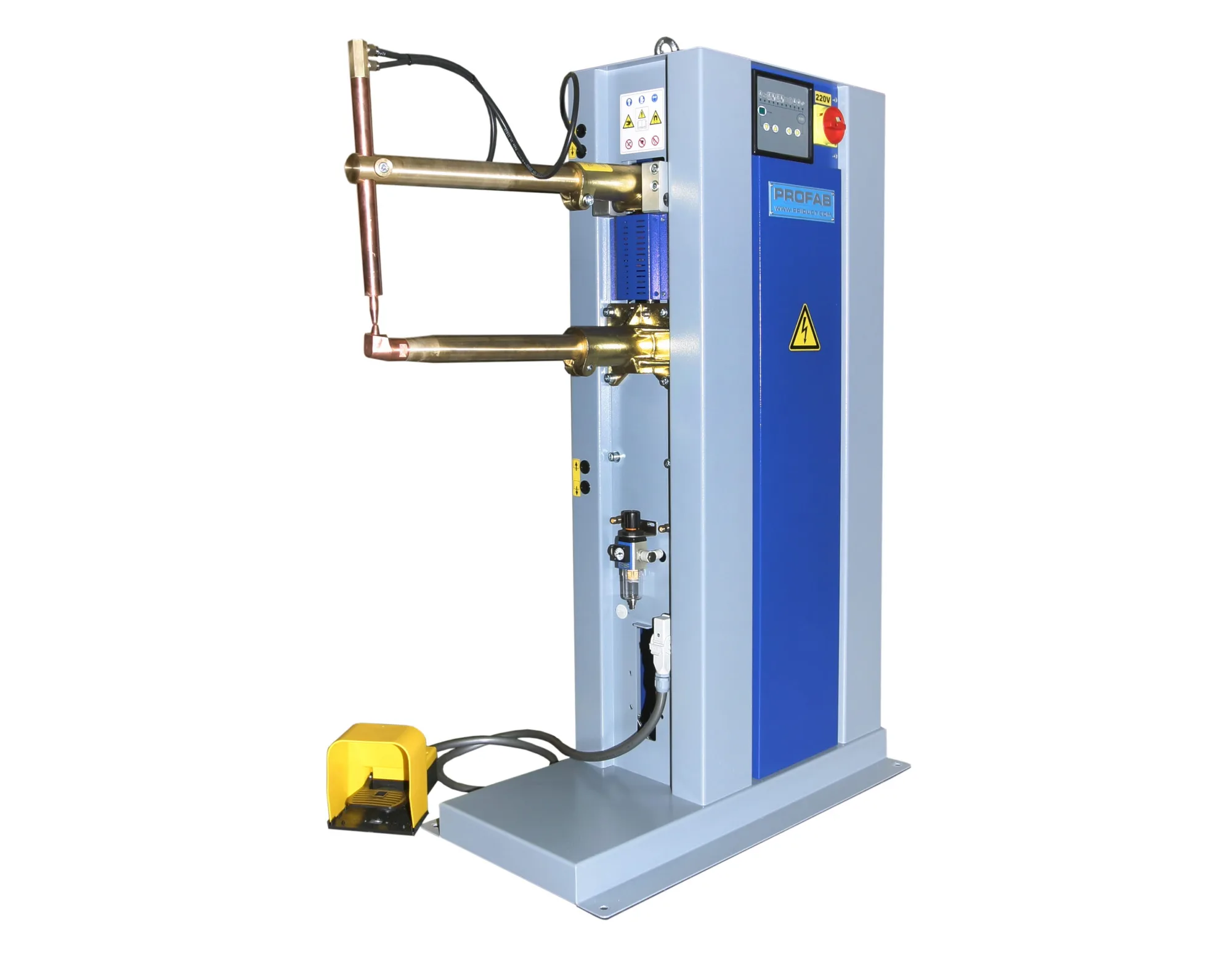

PROFAB Air Operated Fully Automatic Spot Welder
Overview
Description
Download Our Flyer for Spot Welder With PX1800 Controls
Download Our Flyer for Spot Welder With S2 Controls\nModel BSP226PX and BSP236PX Spot Welders – Dual Voltage 220/440 Volt Single Phase
PX1800 Plus Control
Digital touch pad controls squeeze time, power ramp, weld time, weld power, pulse welding and auto repeat. Option for second foot pedal available. Allows for precise weld control adjustment for perfect welds and increased tip life.
Spotwelder Features:
Air operated rocker arm resistance spotwelder with electric foot pedal control
Arms adjust 15" to 29"
Uses standard Morse #1 tapered tips
Water-cooled transformer, arms and tip holders
Air regulator with moisture trap
220 or 440 volt 1PH electrics (must specify)
Dimensions: 40"L x 12"W x 50"H
Weight: 300 lbs. (425 lbs. crated)
25 KVA or 35 KVA Capacity: 2 pcs 14 gauge
Custom lower arm design allows welding tubes as small as 2" diameter and no hoses to interfere with parts
Optional ProCool II coolant recirculator available (shown below)
PROFAB Spot Welder PX1600 Quick Start Up Guide (pre 2020)
PROFAB Spot Welder PX1700 Quick Start Up Guide (2020)
PROFAB Spot Welder Manual
ProCool II Coolant Recirculator Features:
Plastic water tank eliminates coolant contamination due to electrolysis or chemical reactions
All units are plumbed with copper tubing and reinforced hose.
New extended life pump features a direct drive power system reducing maintenance and vibration
No external plumbing is required because of closed loop water system
Self priming pump
Easy change pump
Strong rigid construction designed to support power unit
Compact design
Factory set at 50 psi adjustable to 80 psi
3 gallon reservoir
Net weight: 37 lbs / 17 kg
Looking for a great alternative to the Pei Point spot welder? This is it!
The spot welder is now completely up and running, works perfectly. The electricians hook up the cooler to come on when I turn the welder on. Thanks for your assistance on this piece of equipment. I’m sure we will be ordering more shop toys soon.
P. Sturges
Specifications
Weight: 465 lbs
Dimensions: 50 × 50 × 60 in
Capacity: 25 KVA, 35 KVA
Voltage: 220 Volts Single Phase 120 Amp, 220 Volts Single Phase 80 Amp, 440 Volts Single Phase 40 Amp, 440 Volts Single Phase 60 Amp
Control Type: PX1800, S2
Recirculator: None, ProCool II Coolant Recirculator
Manufacturer: Production Products, Inc.
Brand: PROFAB
