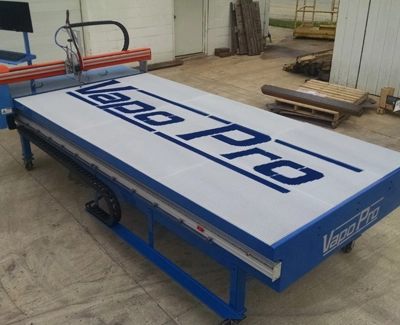

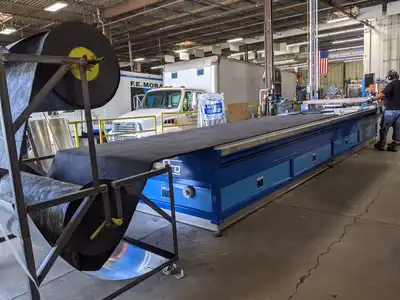

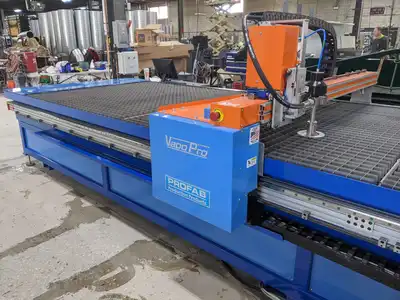

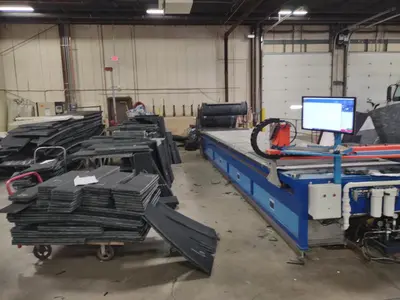

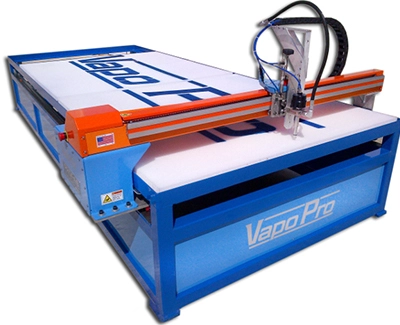

Vapo Pro VPX High Speed Water Jet Cutter

Download Our Flyer\nProduction Products Inc. is pleased to introduce our new high speed Vapo Pro VPX Liner Cutting Machine!
Vapo Pro VPX offers the duct fabricator a clean, cost effective method of cutting insulation materials, including Arma-flex, K-flex, and fiberglass, at speeds up to 1500 ipm, traverse speeds 2000 ipm.
By cutting common lines, Vapo Pro can keep scrap to a minimum.
Vapo Pro VPX insulation water jet cutter features include:
Designed for HVAC duct fabricator and soft materials fabrication in mind
7000, 10,000, triplex pumps,or 40,000 – 60,000PSI Intensifiers pump options available
4 inch liner cutting capable
5ft and 6ft width options
Stainless steel weld sealed lower water collection pans
High Power axis drive options with travel speeds up to 2500IPM
Cuts fiber glass, cotton, rubber, armacell…
5” of clearance under gantry for the thickest insulation or multi layer stack cutting
Precision linear guide rails on the 10ft (or 20ft) axis, Dirt immune Vee rails
Low maintenance stepper or high power servo drives systems available
Low or no maintenance pump 208-480V 3phase, low power consumption
CNC compatible with all major CAD CAM software providers
Up to 60,000 psi pump available
*The entire  PPI Plasma Pro and Vapo Pro family of CNC machines are designed, fabricated, assembled in the USA
