Increase Your ProDUCTivity with the fastest Vane Machine on the market – produces 1,200 – 12″ pieces per hour!
You will not find a faster rail making machine on the market!
Programmable controller (PLC) means no manual measuring – lengths are cut automatically!
PLC touchpad controls length and quantity
Seamed stitched tooling
Speed: 1200 pcs/hour (12″)

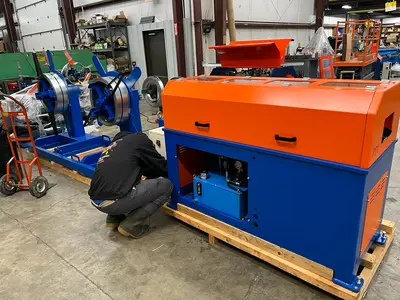

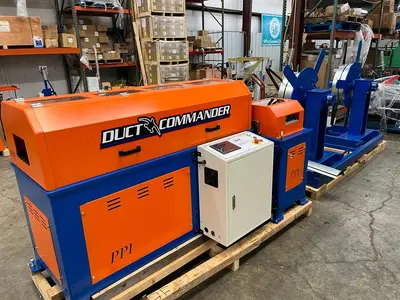

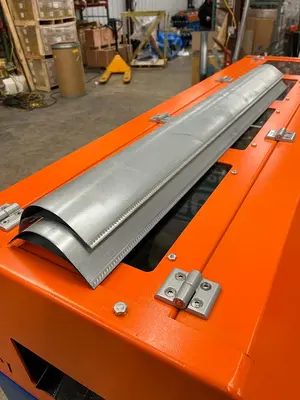

Vane Pro VP2 – 2″ Vane Maker
Material: 26 ga. Galvanized Steel, prime lock forming quality
Cutting Method: Shear, self-contained hydraulically powered
Voltage: 208-230V/3ph/60Hz, 20 Amp minimum
2 – 600 lb. non-powered reels or 2 power-driven reels for coils exceeding 600 lbs
No Air Required
48″ Maximum Part Length
Weight: 850 lbs
Dimensions: 54″ long x 35″ wide x 51″ high, plus 60″ long for part length gauge

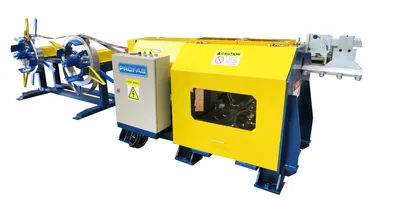

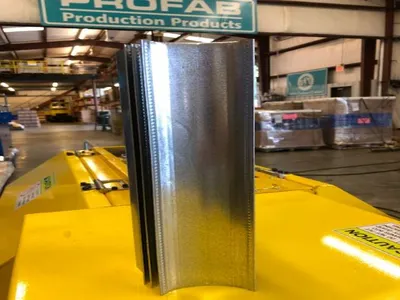

Vane Pro VP4 – 4″ Vane Maker
Material: 24 ga. Galvanized Steel, prime lock forming quality
Cutting Method: Shear, self-contained hydraulically powered
Voltage: 208-230V/3ph/60Hz, 30 Amp minimum
2 – 600 lb. non-powered reels or 2 power-driven reels for coils exceeding 600 lbs
No Air Required
120″ Maximum Part Length
Weight: 1,950 Lbs
Dimensions: 76″ long x 42″ wide x 54″ high, plus 138″ long for part length gauge

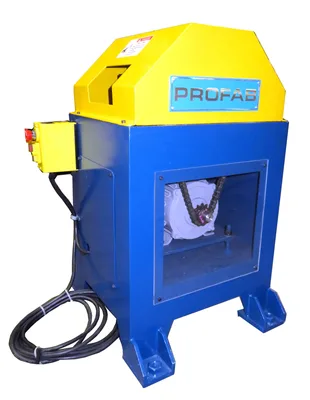

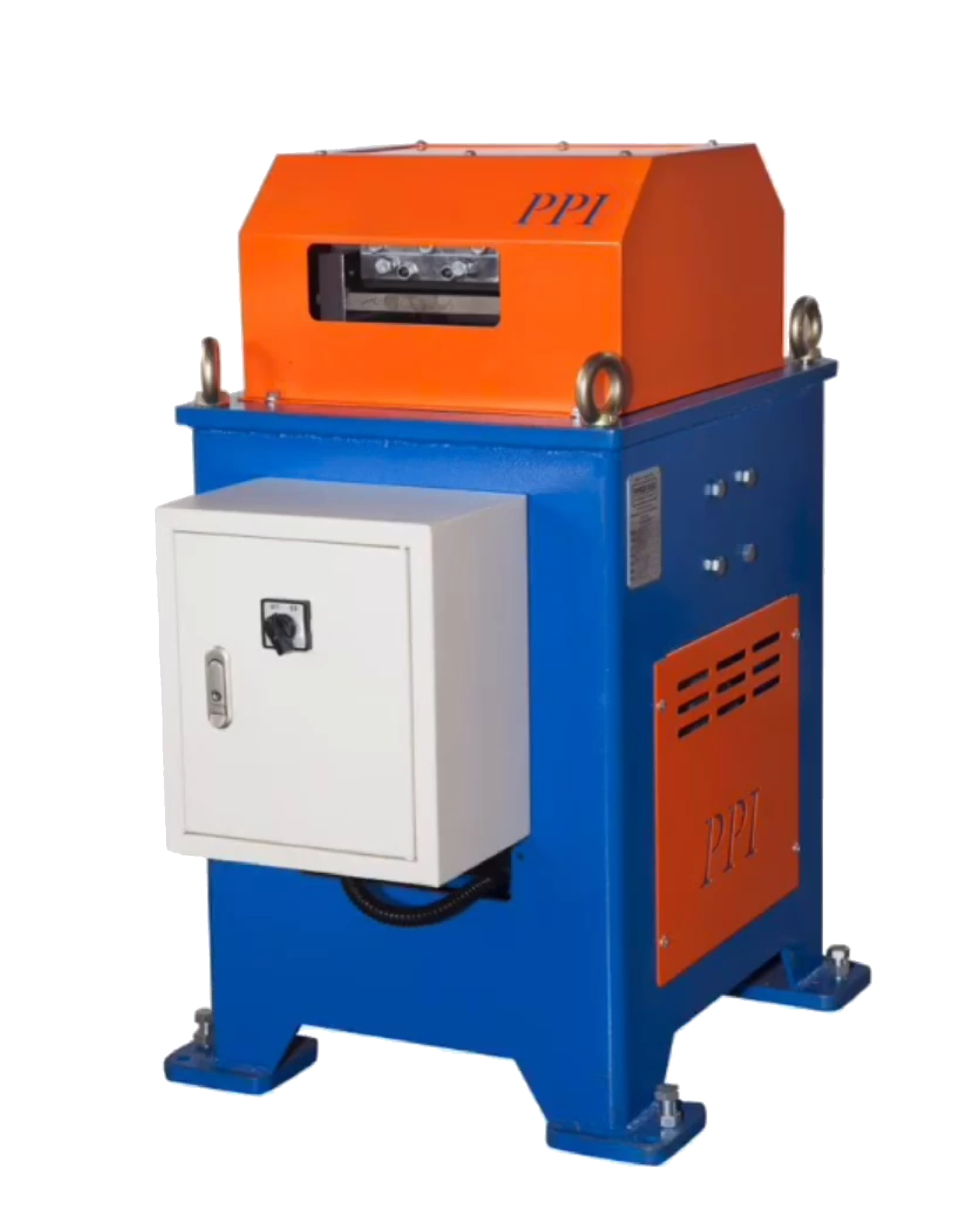

Rail Maker RP2 – 2″ Rail Maker
2″ Push-type railmaker
Material: 22-26 ga. galvanized steel
Slit Width: 4-1/2″ +/- 1/64″
Hand Fed process

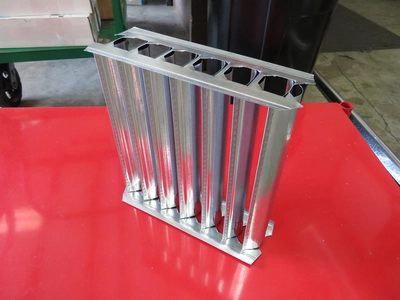

Vane Spacing: 2-1/8″ per SMACNA standard
Voltage: 208, 230, or 460V/3ph/60Hz
Weight: 300 lbs
Dimensions: 24″ long x 20″ wide x 45″ high
Rail Maker RP4 – 4″ Rail Maker
4″ Push-type railmaker
Material: 22-26 ga. galvanized steel
Slit Width: 7″ +/- 1/64″
Hand Fed process
Vane Spacing: 3-1/2″ per SMACNA standard
Voltage: 208, 230, or 460V/3ph/60Hz
Weight: 300 lbs
Dimensions: 28″ long x 20″ wide x 45″ high
