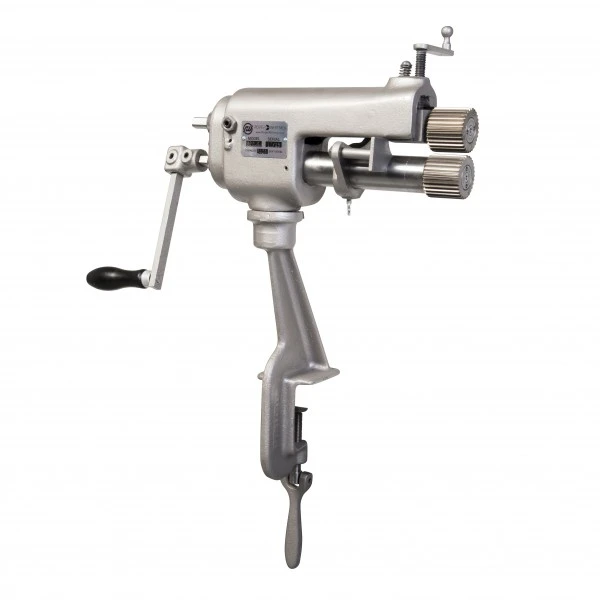

No. 622 Combination Rotary Machine

PEXTO forming machines included in this section offer a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, burring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of their flexibility. Most are portable and may be set up at the job with a clamp-on base. The No. 622 Series is equipped with the addition of a 7″ deep throat for additional forming capabilities, such as furnace collar edging. The Model No. 622 includes a set of rolls (A, C, D, E & F) and gauges or may be ordered without rolls as Model No. 622LR*. A number of rolls may be ordered separately from the roll chart to use with this machine. No. 622 Series machines include No. 975 clamp-on offset base. * Other versions available with rolls for specific purposes.
Weight: 50 lbs
Dimensions: 19 x 10 x 9 in
Maximum capacity, mild steel: 24 ga/ 0.61 mm
Throat depth: 7 in/ 178 mm
Distance between shaft centers: 2 in/ 51 mm
Ratio gearing: 1 : 1

Manufacturer: Pexto
Brand: Pexto
Option: Machine Only, Machine + Rolls & Turning Gauge
