Liner Cutting Option for Plasma Tables

Available in 5′ x 10′ and 5′ x 20′ sizes.\n[vc_row][vc_column][vc_column_text]

Automated Cutting of fiber glass insulation for duct liners
Download the Liner Pro software for your existing duct software
Dramatically improves material utilization and overall quality
Both router cutting and water jet cutter options are available

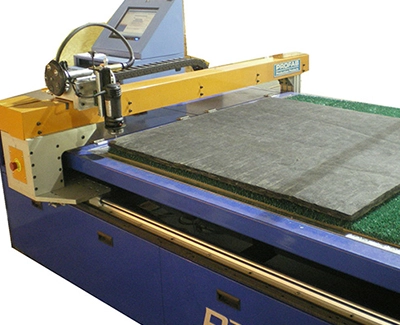

Liner Pro II duct liner cutter specifications:
High Speed accurate short fiber liner cutting machines and systems.
Short Fiber cutting machine capabilities
1/2 inch thick liner: cut speed up to 1000 Inches/Per Min.
1 inch thick: cut speed up to 750 IPM
1 1/2 inch thick: cut speed up to 500 IMP
2 inch thick: cut speed up to 250 IMP

Adding a Liner Pro II cutter to your shop will dramatically increase the productivity of your automatic duct liner processing while improving the appearance and quality of your lined duct. Sheets of Acoustic Duct liner fittings are downloaded through your existing duct fitting software. This dramatically improves liner utilization using your duct software’s nesting capabilities. The CNC cut parts match the metal fittings perfectly with nice clean edges. There are 2 options for cutting machine liners with the Liner Pro II — a high speed router or high pressure water jet.

Traverse speed (between parts) up to 1500 IPM regardless of cut speed
One tool (bit) change required for liners only
Light weight rigid aluminum gantry with high speed router
Heavy duty / heavy wall welded single unit square tube framing
PC based PPI – PC – CNC control system
