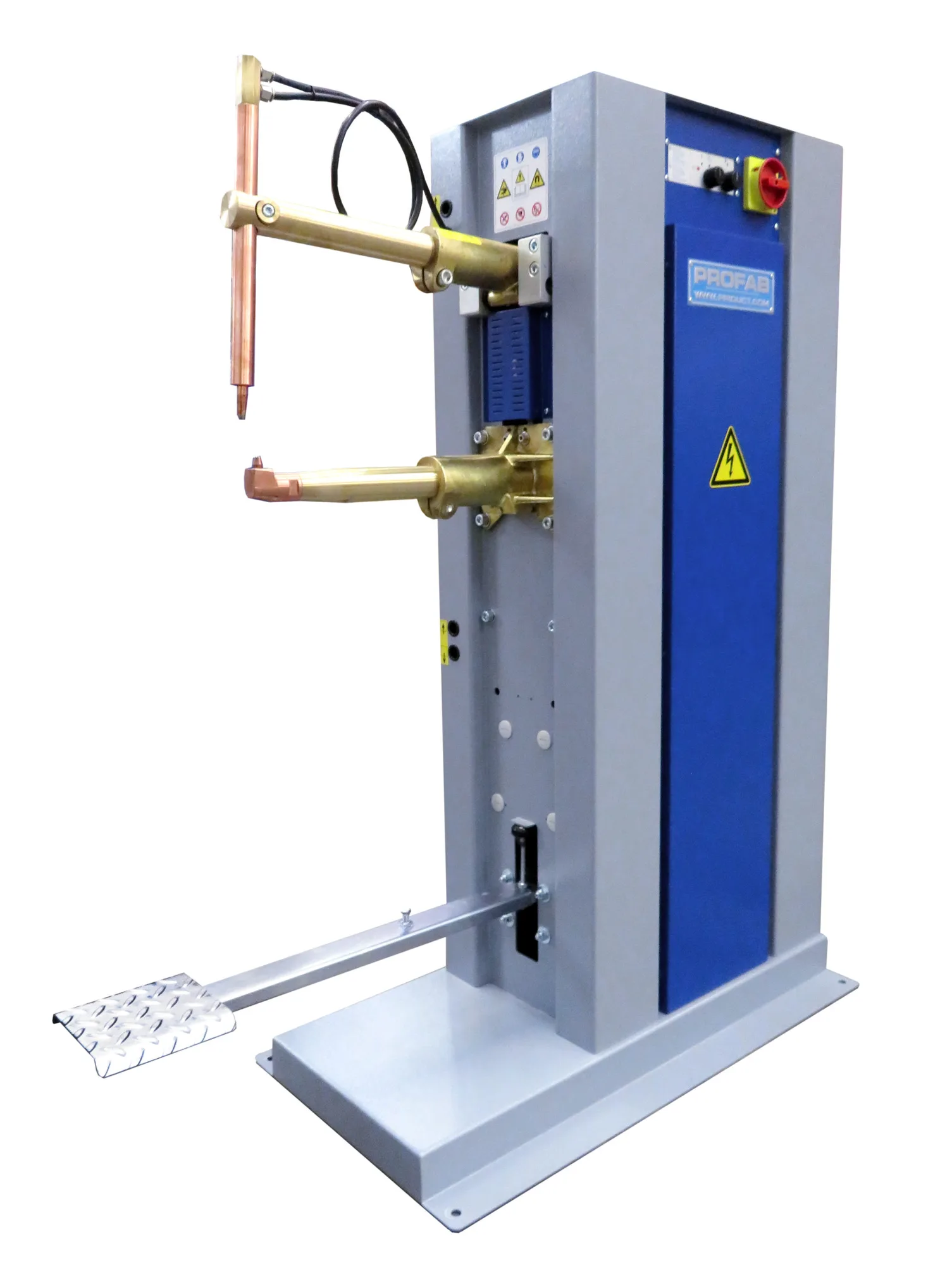

PROFAB Manual Foot Rocker Spot Welder

Download Our Flyer\nThe spot welder is now completely up and running, works perfectly. The electricians hook up the cooler to come on when I turn the welder on. Thanks for your assistance on this piece of equipment. I’m sure we will be ordering more shop toys soon.
Model BSM226RF – 220 Volt Single Phase
Spotwelder Features:
Foot-operated rocker arm resistance spotwelder (manual)
Arms adjust 15″ to 29″
Uses standard Morse #1 tapered tips
Water-cooled transformer, arms and tip holders
220 1PH electrics
Dimensions: 40″L x 12″W x 50″H
Weight: 300 lbs. (425 lbs. crated)
25 KVA Capacity: 2 pcs 14 gauge
Custom lower arm design allows welding tubes as small as 2″ diameter and no hoses to interfere with parts
Optional ProCool II coolant recirculator available (shown below)
ProCool II Coolant Recirculator Features:
Plastic water tank eliminates coolant contamination due to electrolysis or chemical reactions
All units are plumbed with copper tubing and reinforced hose.
New extended life pump features a direct drive power system reducing maintenance and vibration
No external plumbing is required because of closed loop water system
Self priming pump
Easy change pump
Strong rigid construction designed to support power unit
Compact design
Factory set at 50 psi adjustable to 80 psi
3 gallon reservoir
Net weight: 37 lbs / 17 kg

Weight: 425 lbs
Dimensions: 40 × 12 × 50 in
Voltage: 220 Volts Single Phase 80 Amp, 440 Volts Single Phase 40 Amp
Recirculator: None, ProCool II Coolant Recirculator
Manufacturer: Production Products, Inc.
Brand: PROFAB
