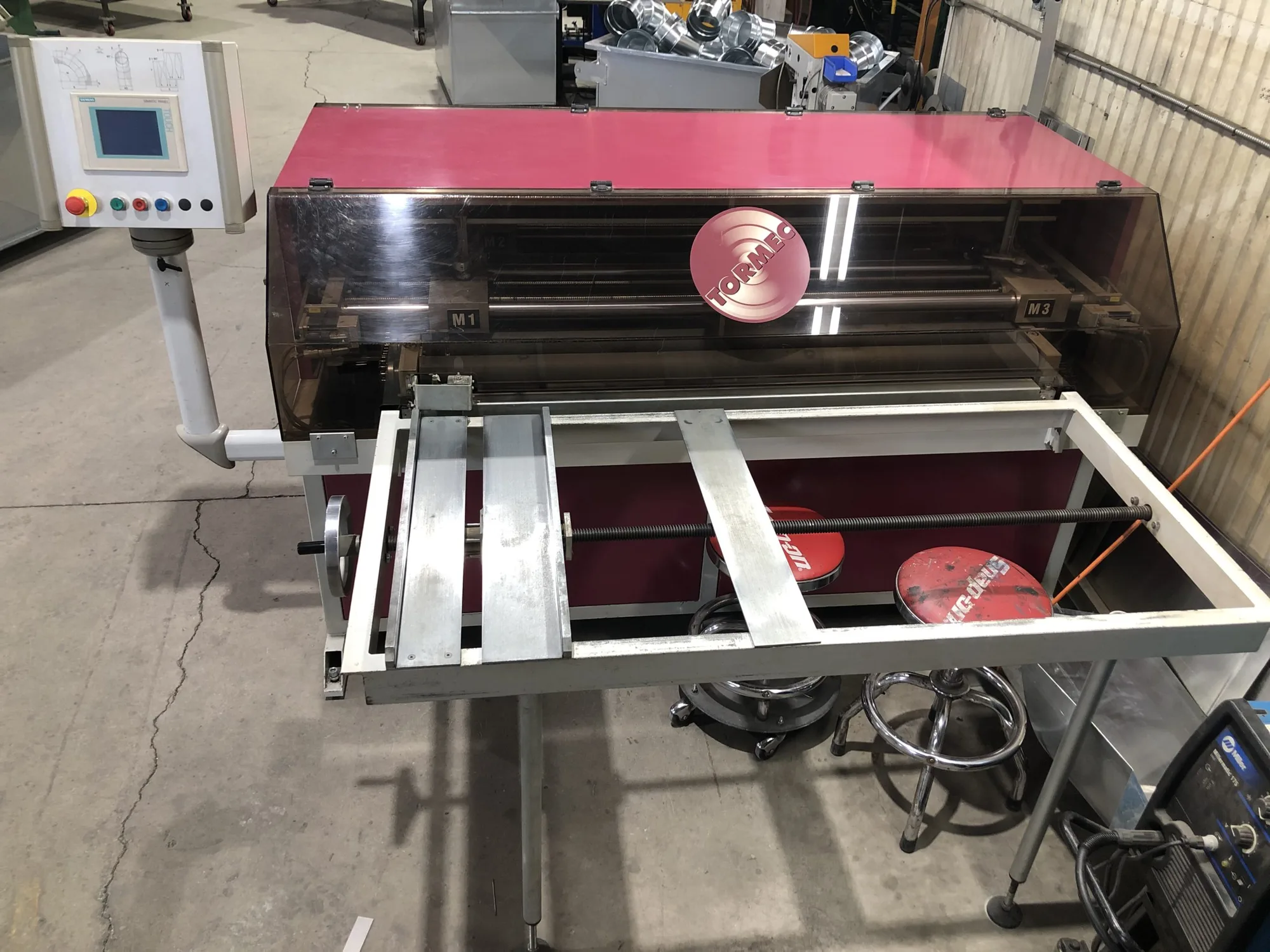

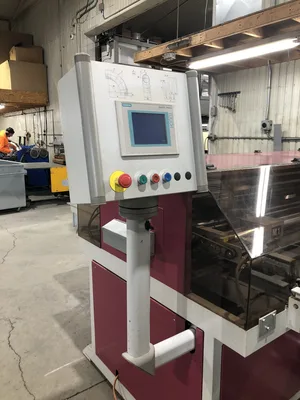

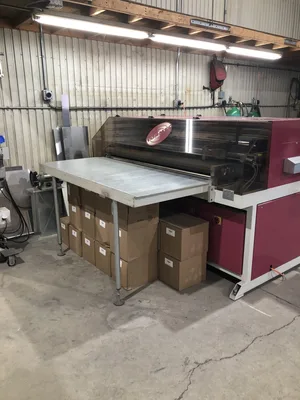

Used 2007 TORMEC SEGTO Curve Cutter / Segment Cutting Machine

TECHNICAL DATA
Diameter of tube elbow: 125 – 1000 mm ( 5″ to 40″ )

Max. angle of elbow: 90°

Max. angle range: 5 – 46°

Number of segments in one pass: 5 (depending on diameter)

Overmeasure for seam: 1 – 20 mm ( 0.04″ to 0.8″ )

Extension for muff: 1 – 50 mm ( 0.04″ to 2″ )

Material steel: bright, galvanized and stainless

Processable sheet: 0.4 – 1.2 mm ( depending on material ) ( 28 to 18 ga )

Max. size of sheet: Width 1500 mm (60″), Length 3200 mm (134″)

Speed of feed: 2 – 8.0 m/min. ( 6 to 26 ft/min. )

Power: 2.5 kVA

Power supply: 3x400V / N / PE
