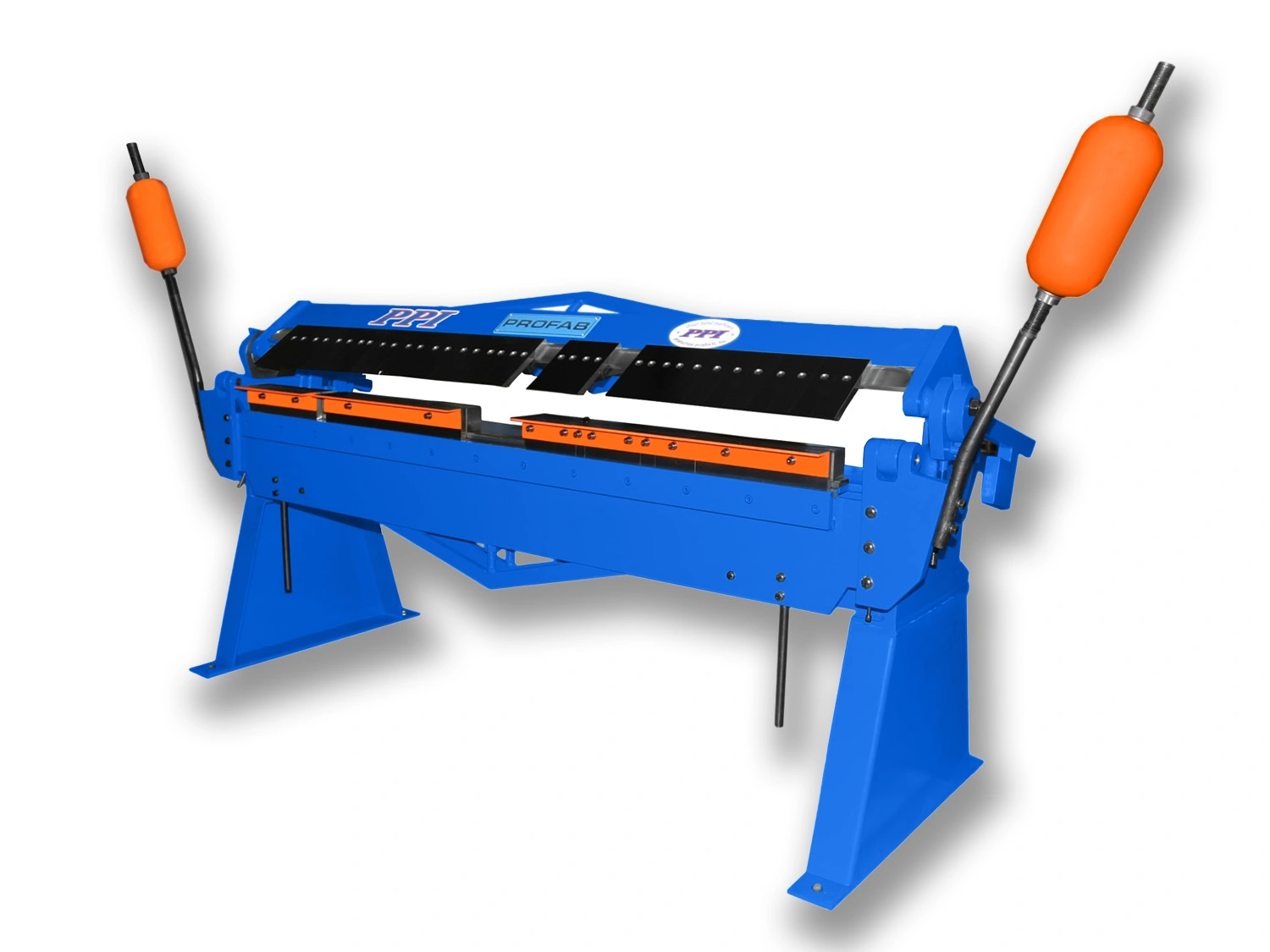

PROFAB PPCF Universal Manual Brake TD-7216
Overview
Description
Introducing the PROFAB Universal PPC/PPF Manual Brake. Perfect counterweights make for easy and smooth sheet metal bending.
Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
Lift of beam: 1.5″” (38.1mm)
Front to back ram adjustment: 1/2″ (13mm)
A minimum reverse bend of 5/8″ (16mm)
Min flange width: 1″ (25mm)
Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Maximum transverse bend in center of machine: 2″ (50.8mm)
Maximum transverse bend at end of machine: 3″ (76.2)
Specifications
Weight: 1 lbs
Dimensions: 1 × 1 × 1 in
Manufacturer: Production Products, Inc.
Brand: PROFAB
