Features:
Designed with the sheet metal and HVAC duct fabricator in mind
1-inch plate capable
5ft and 6ft width options
Dual side drive long axis drive
Precision gear reduction units optional
High power axis drive options with travel speeds up to 2500IPM
Insulation cutting add on options available
Combination plasma and insulation cutting packages available
5″ of clearance under gantry for thick insulation materials or dissipation of heat from plate cutting
Precision linear guide rails on the 10ft (or 20ft) axis, dirt immune Vee rails
Dual zone (or quad zone for the 20ft table) exhaust for better fume extraction
Low maintenance stepper or high power servo drives systems available

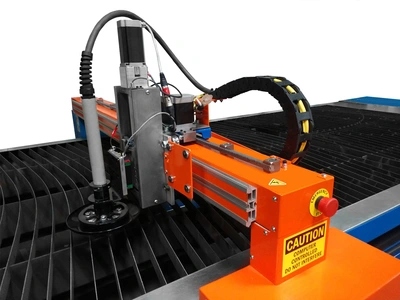

Standard with ball caster floating torch head, CNC software integrated automatic torch height control available
CNC compatible with all major CAD/CAM software providers
*The entire PPI Plasma Pro and Vapo Pro family of CNC machines are designed, fabricated, and assembled in the USA. Plasma Pro machines are offered with Hypertherm Powermax series plasma units, 45, 65, 85, 105, 125 amp
