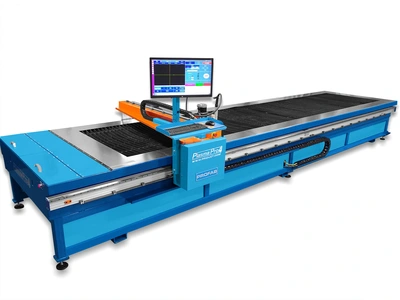

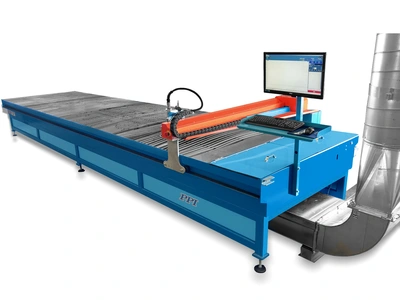

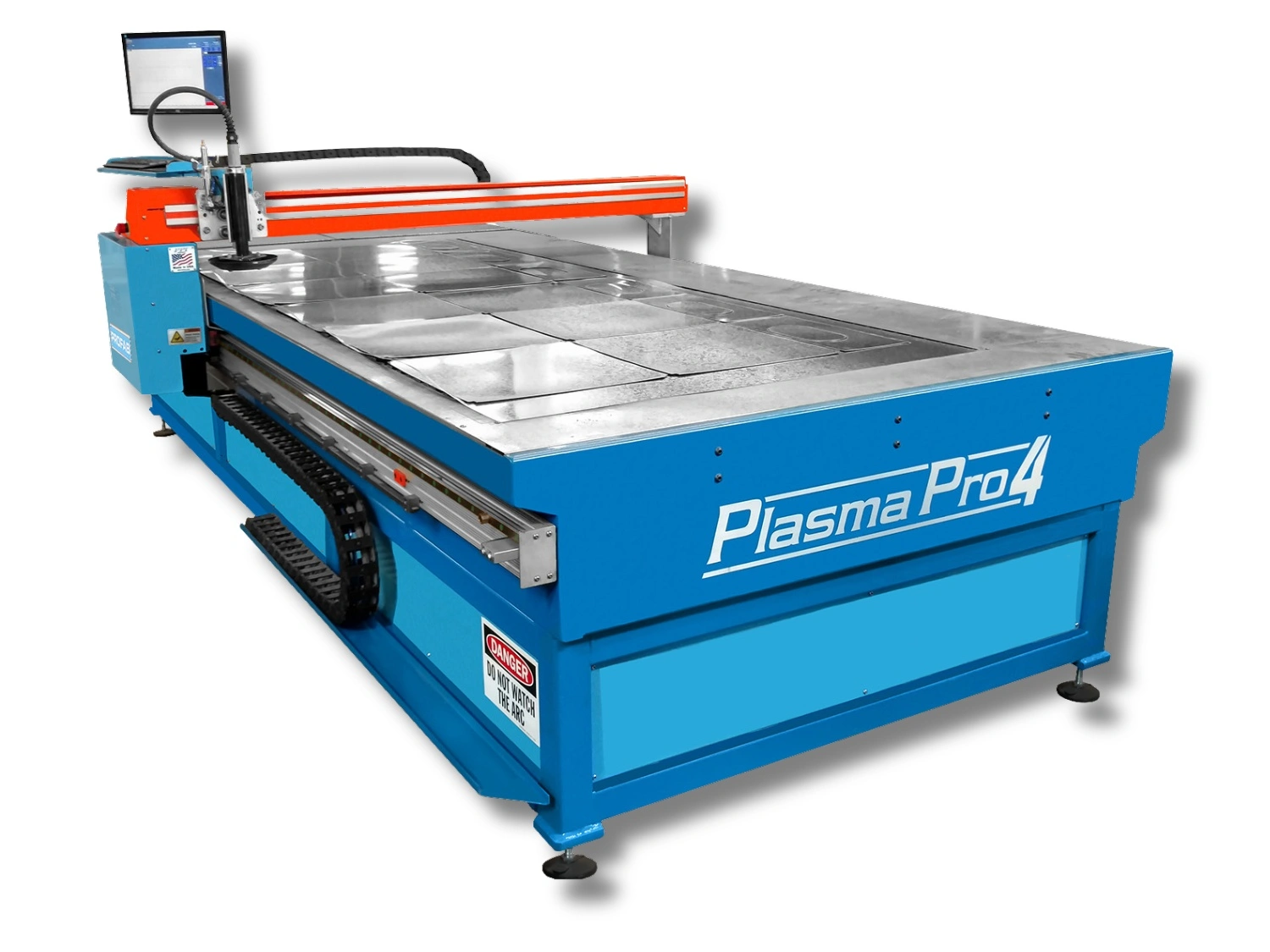

Plasma Pro IV Cutting Machine for HVAC Duct
Overview
Description
Download Our Flyer\nPurchase Plasma Consumables Here
Features:
Designed for the sheet metal and HVAC duct fabricator in mind
3/4 inch plate capable
Combination Plasma and Insulation cutting packages available
5” of clearance under gantry for thick insulation materials or dissipation of heat from plate cutting
Precision linear guide rails on the 10ft (or 20ft) axis, Dirt immune Vee rails
Dual zone (quad zone 20ft table) exhaust for better fume extraction
Low maintenance stepper or high power servo drives systems available
Standard with ball caster floating torch head, CNC software integrated Automatic Torch Height Control available
CNC compatible with all major CAD CAM software providers
*The entire PPI Plasma Pro and Vapo Pro family of CNC machines are designed, fabricated , assembled in the USA Plasma Pro machines are offered with Hypertherm Powermax series plasma units, 45, 65, 85, 105, 125 amp
