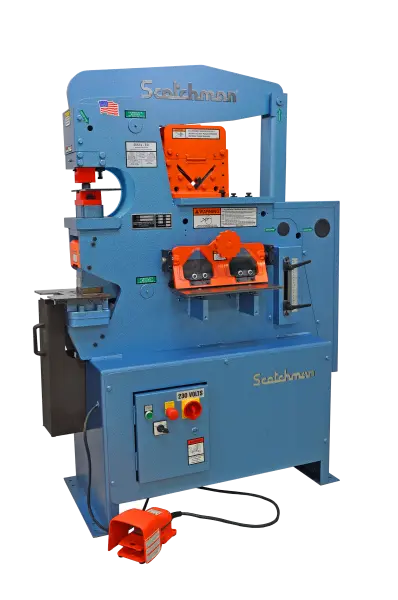

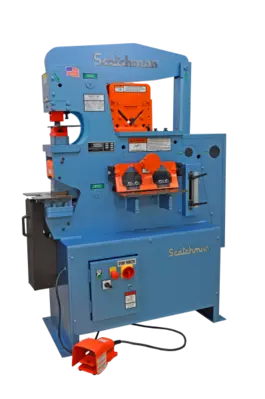

The versatile 50514 EC hydraulic ironworker from Scotchman Industries is now better than ever with the addition of a 5th work station. The 50514 EC is an all-around workhorse and comes standard with a 50-ton punch capable of producing a 13/16” hole in 3/4” material, a 4” x 4”x 3/8” angle shear, a 14” flat bar shear, a built-in rectangle notcher, and a fifth station capable of housing an optional pipe notcher. In addition to the standard tooling features, the 50514 EC is also compatible with a range of optional tools from Scotchman for added versatility and function around the shop. Like all Scotchman ironworkers, 50514 EC is proudly made in the USA and backed by Scotchman’s Best in the Business 3-year warranty.
Features:
Single Operator, 5 Stations
50 Ton Punch Station (1-1/4″ in 1/2″ and 13/16″ in 3/4″)
Keyed Punch Ram for Safety
6″ Throat Depth
2″ Die Holder
Punch Nut with Wrench & Stripper
One Round Punch & Die: Max. Dia. 1″
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
Angle Shear Capacity 4″ x 4″ x 3/8″ at 90° and 2″ x 2″ x 3/8″ at 45°
14″ Flat Bar Shear with 4-Way Reversible Blade (3/4″ x 4″, 1/2″ x 8″, 3/8″ x 10″ 1/4″ x 14″)
Rectangle Notcher – 2-1/2″ x 3″ x 5/16″, 2-1/2″ x 2-3/4″ x 3/8″
Tool Table Work Area
Slug Receptacle
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt / 3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA
