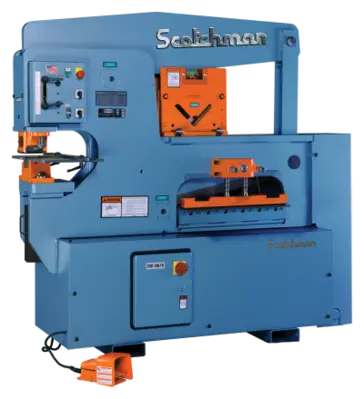

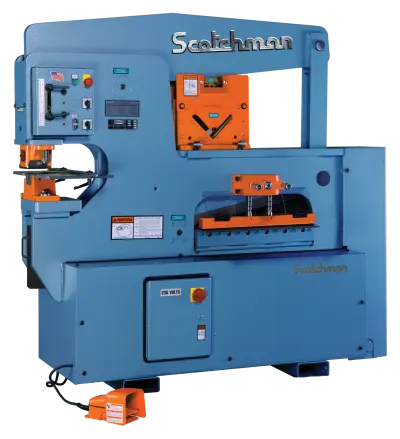

If you are in the medium to large metal fabrication business, the Scotchman 9012-24M hydraulic ironworker will give you the greatest amount of versatility and flexibility on the market today. The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide and is supplied with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear capacity on this machine is 6” x 6” x 1/2”; and like all Scotchman angles shears, it is designed to give a distortion free cut. The 9012-24M hydraulic ironworker has the same large tool table design as the 6509-24M, allowing quick and easy change of optional tooling. Like all Scotchman ironworkers, the 9012-24M is backed by our best-in-the business 3-year warranty!
Features:
Single Operator, 4 Stations
90 Ton Punch Station (1-1/8″ in 1″)
Keyed Punch Ram for Safety
12″ Throat Depth
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2″ Die Insert
Punch Nut with Wrench & Stripper
One Round Punch & Die: Max. Dia. 1-1/4″
Punch Jog Control
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
Angle Shear Capacity 6″ x 6″ x 1/2″ at 90°
24″ Flat Bar Shear with 4-Way Reversible Blade (1″ x 8″, 1/4″ x 24″)
Shear Table with Miter Fence
Tool Table Work Area
Slug Receptacle
Two-Stage Hydraulic Pump
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA
