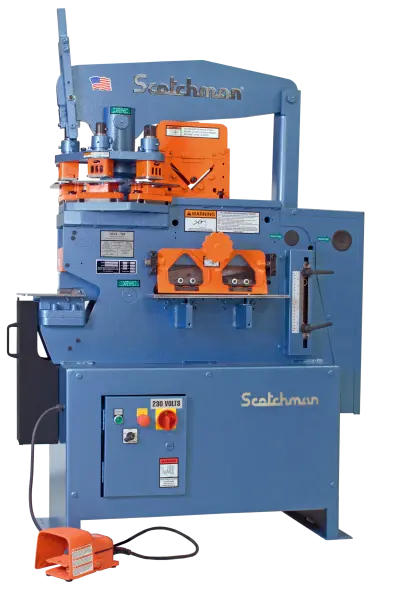

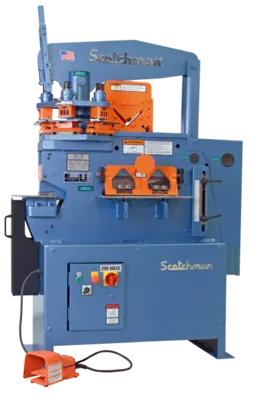

The 5014 ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. The innovative revolving turret accepts up to three different punch sizes that can be changed in seconds reducing set-up time and increasing productivity making the Scotchman 5014 ET ironworker the most versatile and efficient ironworker on the market. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014 ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
Features:
Single Operator, 7 Stations
50 Ton Punch Station with 3-Station Revolving Turret (1-1/4″ in 1/2″ and 13/16″ in 3/4″)
Keyed Punch Ram for Safety
4″ Throat Depth
Three 2″ Die Holders, Three Punch Nuts with Wrench and Three Strippers
One Round Punch & Die: Max. Dia. 1″
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
Angle Shear 4″ x 4″ x 3/8″ at 90° and 2″ x 2″ x 3/8″ at 45°
14″ Flat Bar Shear with 4-Way Reversible Blade (3/4″ x 4″, 1/2″ x 8″, 3/8″ x 10″, 1/4″ x 14″)
Rectangular Notcher, 2-1/2″ x 3″ x 5/16″ , 2-1/2″ x 2-3/4″ x 3/8″
Tool Table Work Area
Slug Receptacle
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA
