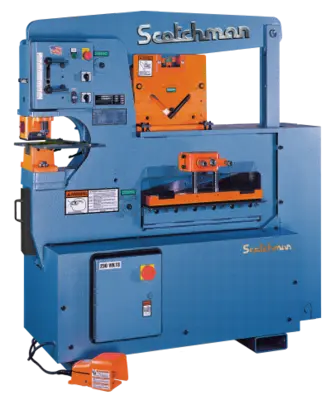

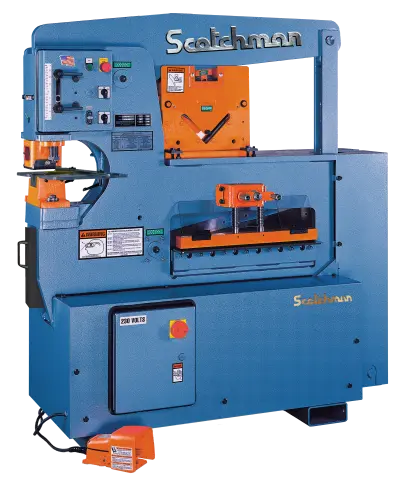

If you are in the metal working or custom fabrication industry, the Scotchman 6509-24M is a must have for your shop. This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity (1″ x 6″, 1/2″ x 12″ and 1/4″ x 24″) and the largest angle shear capacity (6” x 6” x 3/8” and 5″ x 5″ x 1/2″) of any machine in its class. Combining this machine’s large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. Like all of Scotchman Industries ironworkers, the 6509-24M is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
Features:
Single Operator, 4 Stations
65 Ton Punch Station (1-1/16″ in 3/4″)
Keyed Punch Ram for Safety
9″ Throat Depth
Punch Gauging Table w/Fence and Scale
Die Holder Complete with 2″ Die Insert
Punch Nut with Wrench and Stripper
One Round Punch & Die: Max. Dia. 1-1/4″
Punch Jog Control
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
24″ Flat Bar Shear with 4-Way Reversible Blade (1″ x 6″, 1/4″ x 24″)
Shear Table with Miter Fence
Angle Shear Capacity at 90° 6″ x 6″ x 3/8″ and 5″ x 5″ x 1/2″
Tool Table Work Area
Slug Receptacle
Two-Stage Hydraulic Pump
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA
