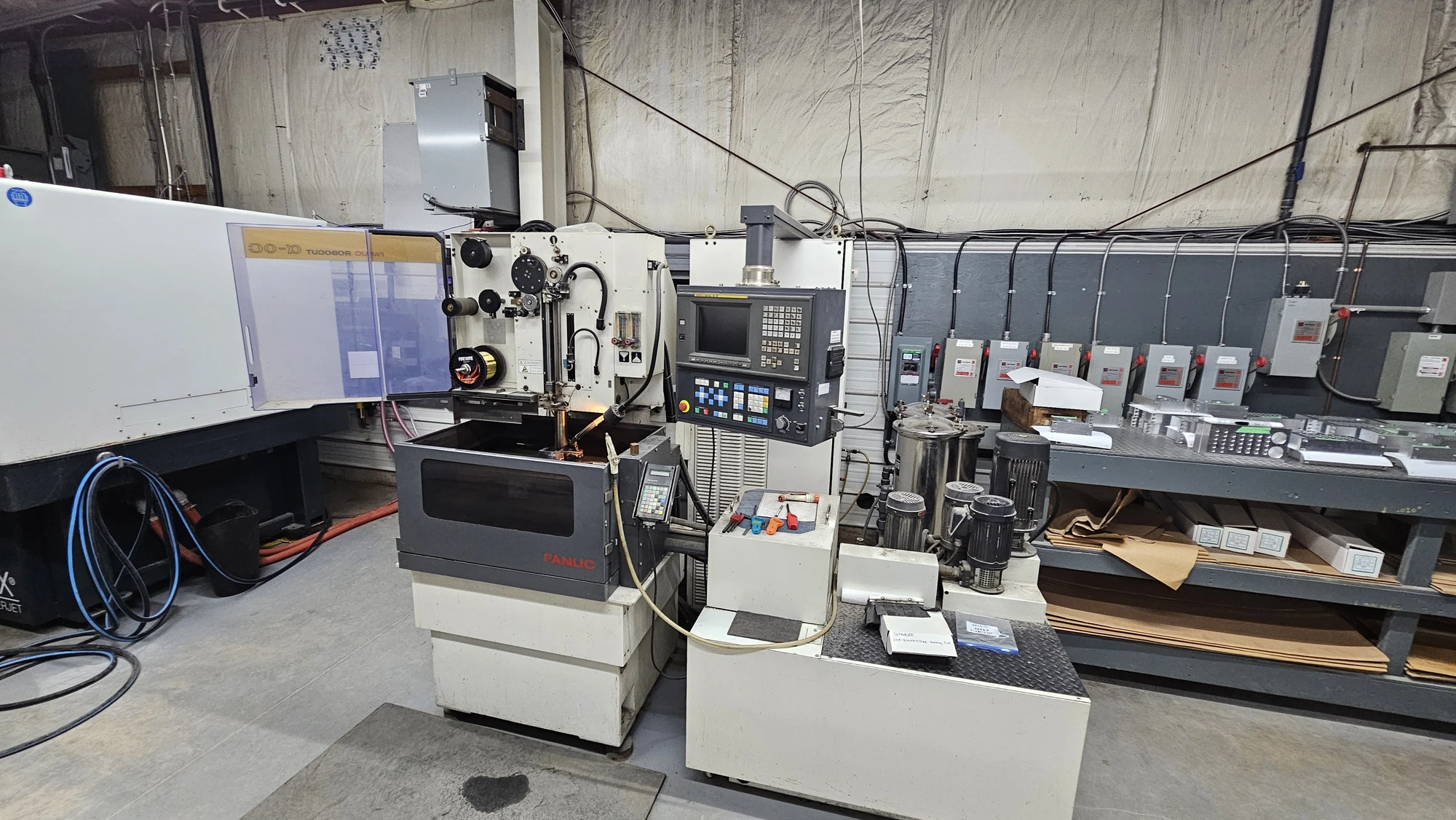

1996 Fanuc Robocut A-OC Wire EDM Machine. Machine is in good shape and can be seen under power as needed.
| X | 12" | 304.8 mm |
| Y | 8" | 203.2 mm |
| Z | 7" | 177.8 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | 'Yes' | 'Yes' |
1997 Fanuc Robocut α-0C – Specifications
Machine Type
CNC Wire EDM (submerged cutting)
Control
FANUC Series 16-W / 16-WC CNC control
Axis Travels
X-axis: 320 mm (12.6 in)
Y-axis: 220 mm (8.7 in)
Z-axis: 180 mm (7.1 in)
U-axis: ±60 mm
V-axis: ±60 mm
Workpiece Capacity
Max workpiece size: approx. 650 × 420 × 170 mm
Max workpiece weight:
about 165–250 kg (364–550 lb) depending on table version
Cutting Capability
Wire diameter: 0.10 – 0.30 mm (0.004" – 0.012")
Max taper angle: ±30° (over ~80 mm thickness)
Max workpiece thickness: about 300 mm
Minimum positioning increment: 0.00001 mm
Feedrates
Rapid traverse:
X/Y: ~900 mm/min
U/V/Z: ~450 mm/min
Cutting feedrate: approx. 0.0001 – 50 mm/min
Wire System
Wire speed: approx. 0 – 10 to 15 m/min
Wire tension: 80 – 2500 g
Automatic wire threading: standard on most machines
Tank / Dielectric System
Dielectric fluid: deionized water
Tank capacity: ~260 – 390 L
Filtration flow rate: ~40 L/min
Electrical Requirements
Power: ~208–415 V, 3-phase
Power consumption: approx. 11–13 kVA
Compressed air: required for wire threading
Machine Size / Weight
Machine weight: approx. 1500–1900 kg (3300–4200 lb)
Typical footprint: around 10.5′ × 7.2′ × 6.6′ overall height/width envelope
